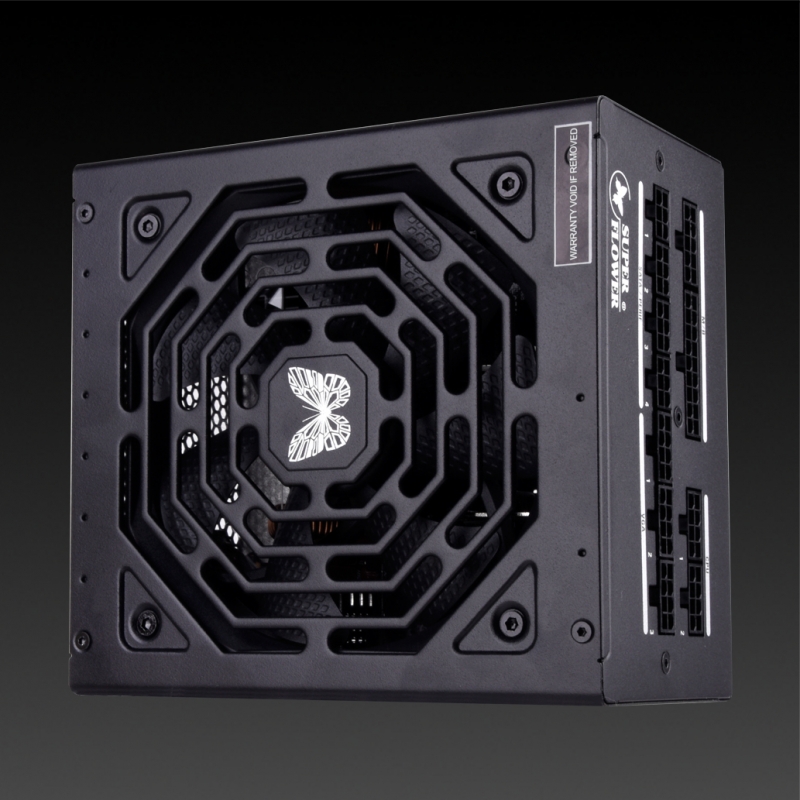

LEADEX III Gold 850W
Products Name : LEADEX III Gold 850W
LEADEX III Gold 850W LEADEX III Gold 850W LEADEX III Gold 850W LEADEX III Gold 850W LEADEX III Gold 850W LEADEX III Gold 850W LEADEX III Gold 850W LEADEX III Gold 850W LEADEX III Gold 850W

Features

LEADEX III series PSU are 80PLUS Gold certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system. LEADEX III series PSU provides high efficiency & stable power output and come with a 13cm three-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦ Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading improvement on +12V/ +5V/ +3.3V
3. Low Output Voltage Ripple
4. Dual Over Power Protection
♦ ECO-design

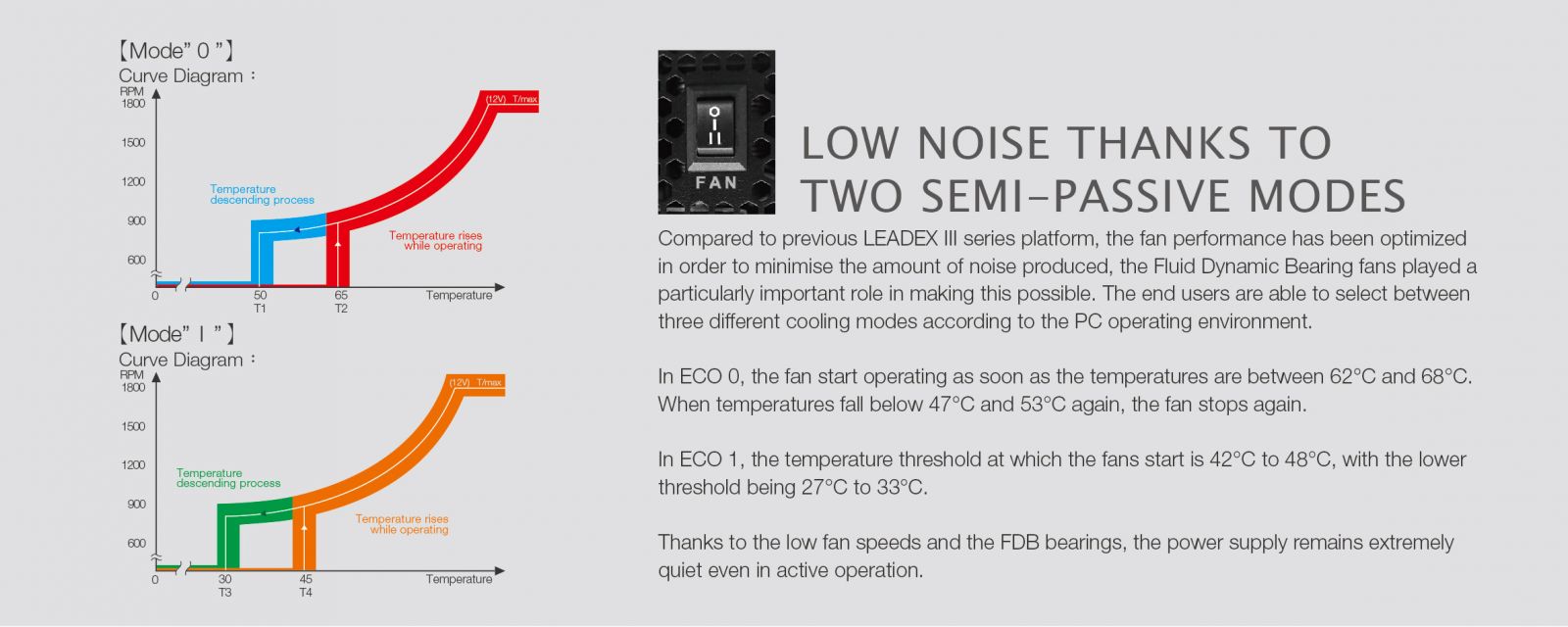

1. Auto + two levels of ECO Fan control
2. High efficiency on all rails, including 5VSB

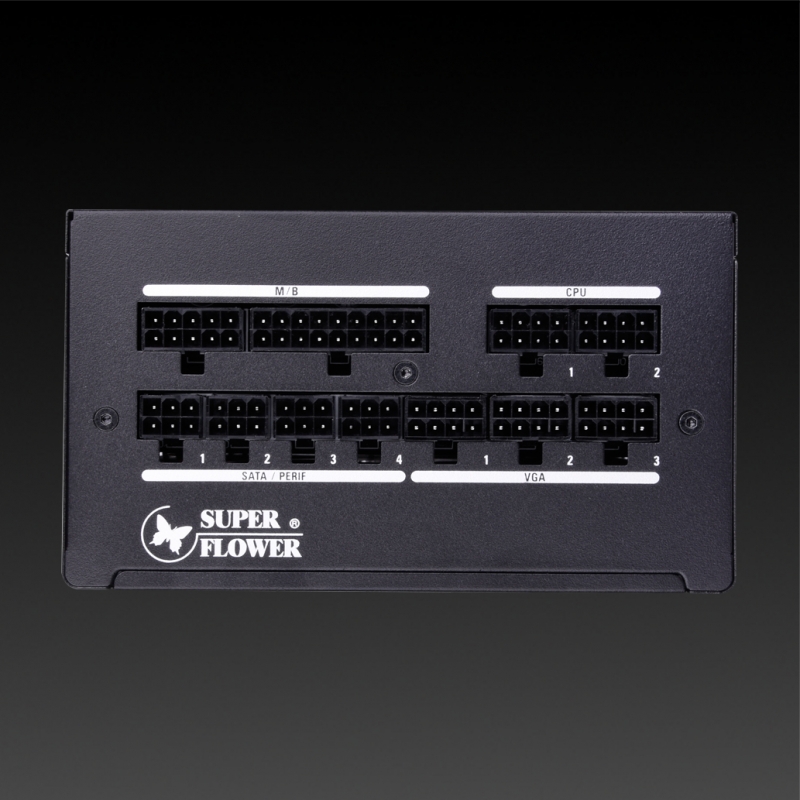

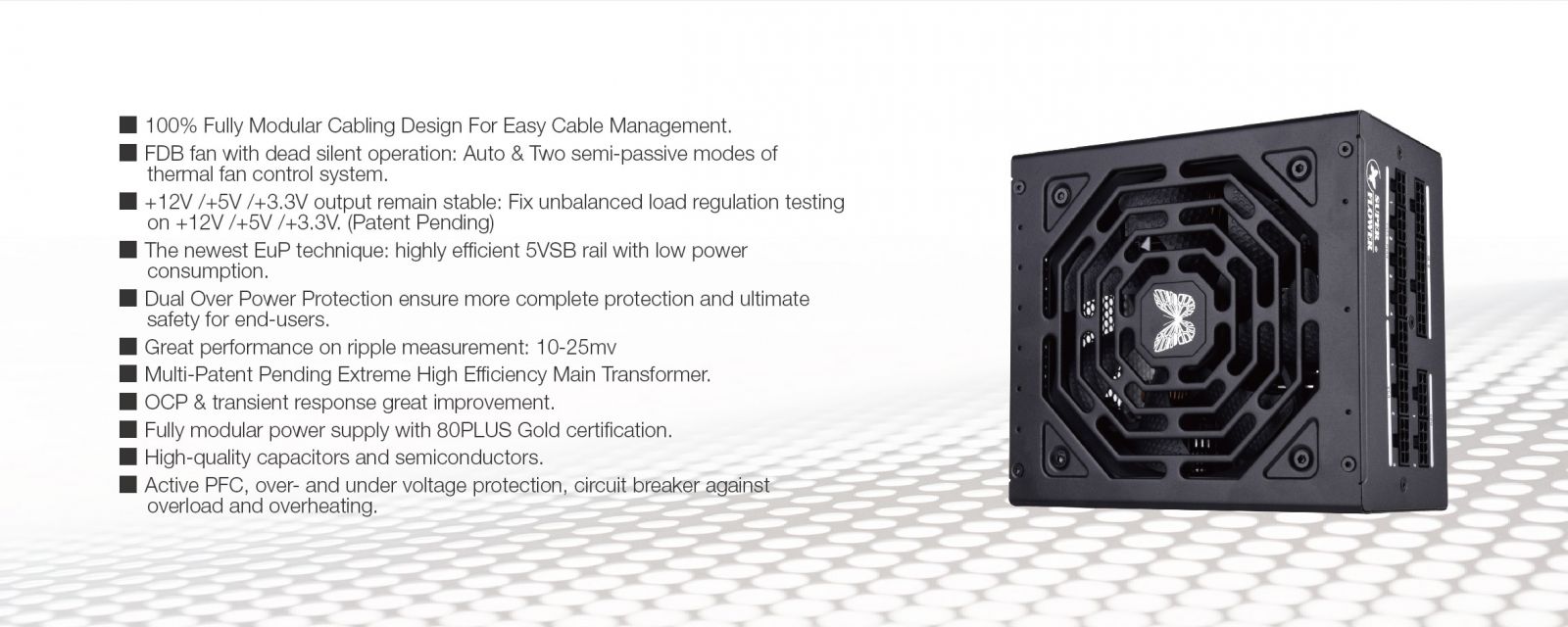

♦ 100% Fully Modular Cabling Design For Easy Cable Management

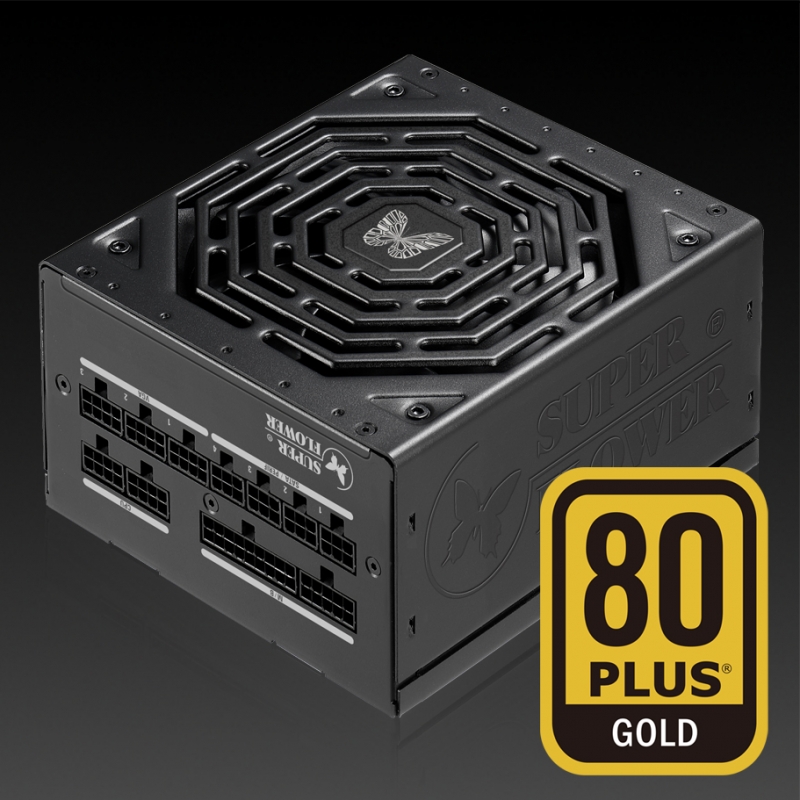

♦ 80 PLUS ® Gold Certified for LEADEX III Gold Series

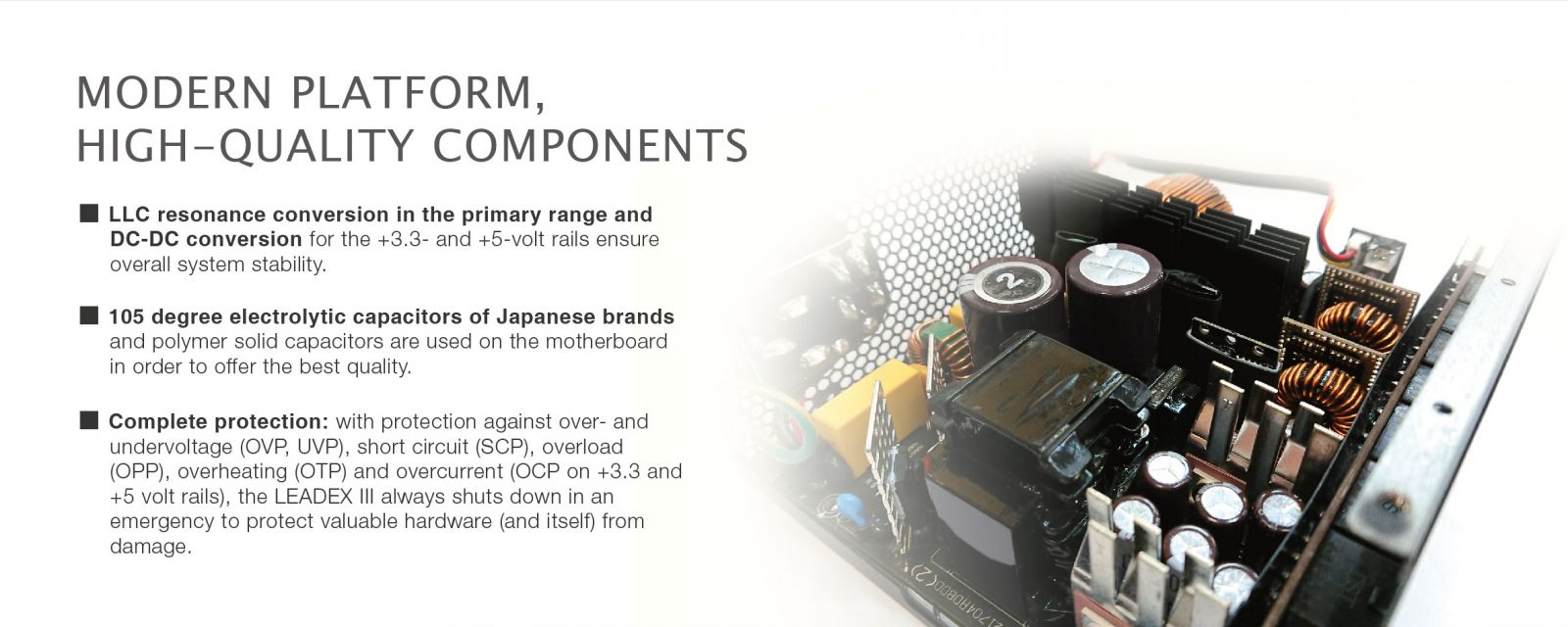

♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
♦ 100% Taiwan A Grade 105°C Capacitors (Modular Backpanel)
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V. v2.32 & EPS 12V. v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Dual Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System

Specification

Model No. SF-850F14HG
Wattage 850W
80+ Efficiency 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold)
Intel Power Design Guide V2.92

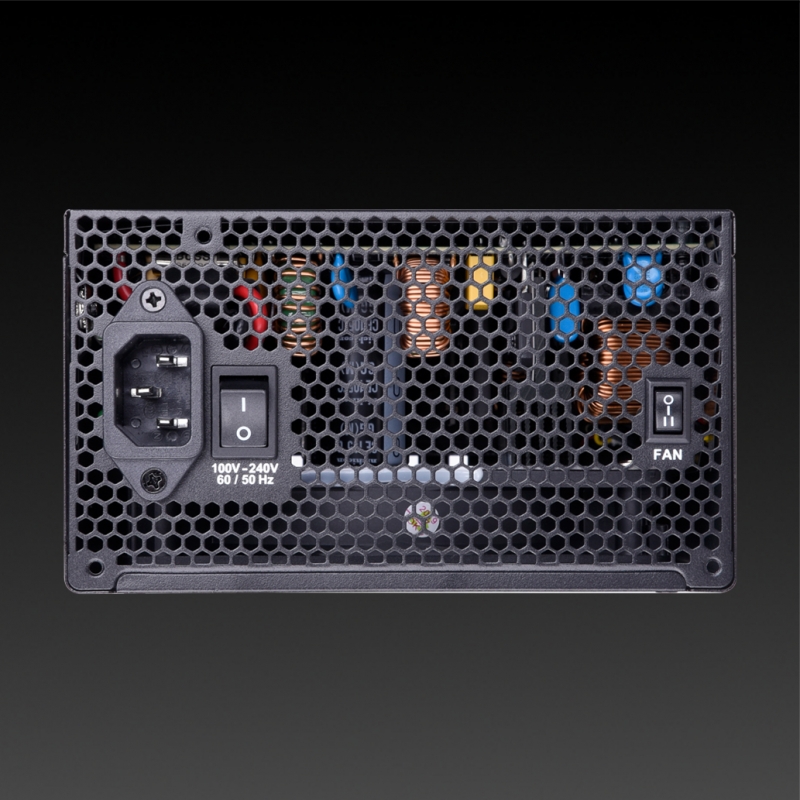

AC Input | Frequency 100V-240V | 60 / 50Hz
Fan Size 130mm F.D.B Fan
Dimension 160mm(L) x 150mm(W) x 86mm(H)
Protection OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP
Safety cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC /CCC
Temperature Passed 50℃ Hot Testing

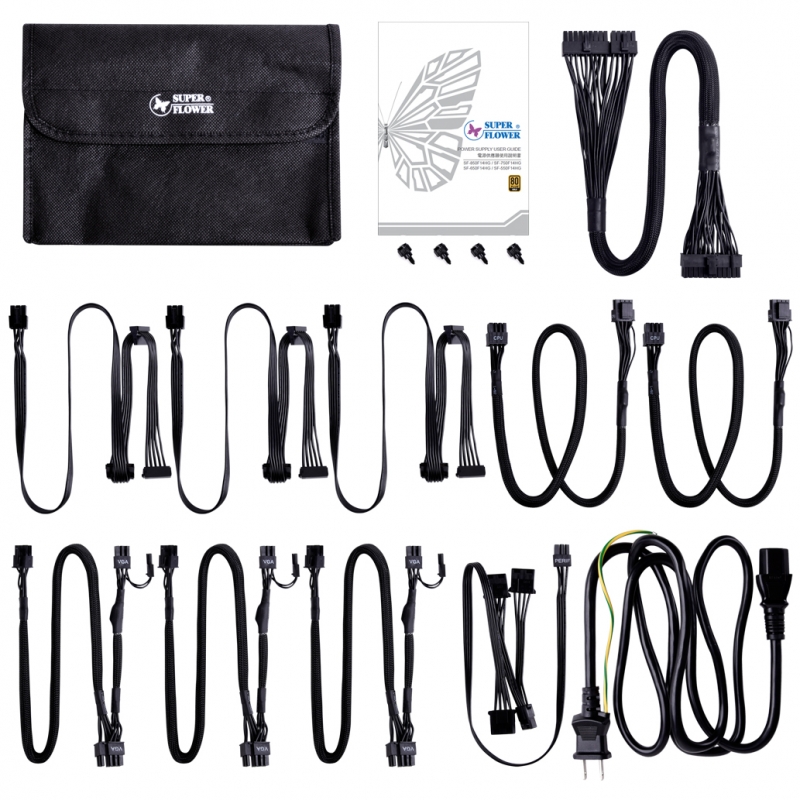

Cable Spec
20+4Pin Fully Modular one cable (600mm)
(4+4Pin) CPU two cables (700mm)
SLI (2 x PCI 6+2Pin) three cables (550+150mm)
3SATA three cables (550+120+120mm)
4Molex one cable (550+100+100+100mm)

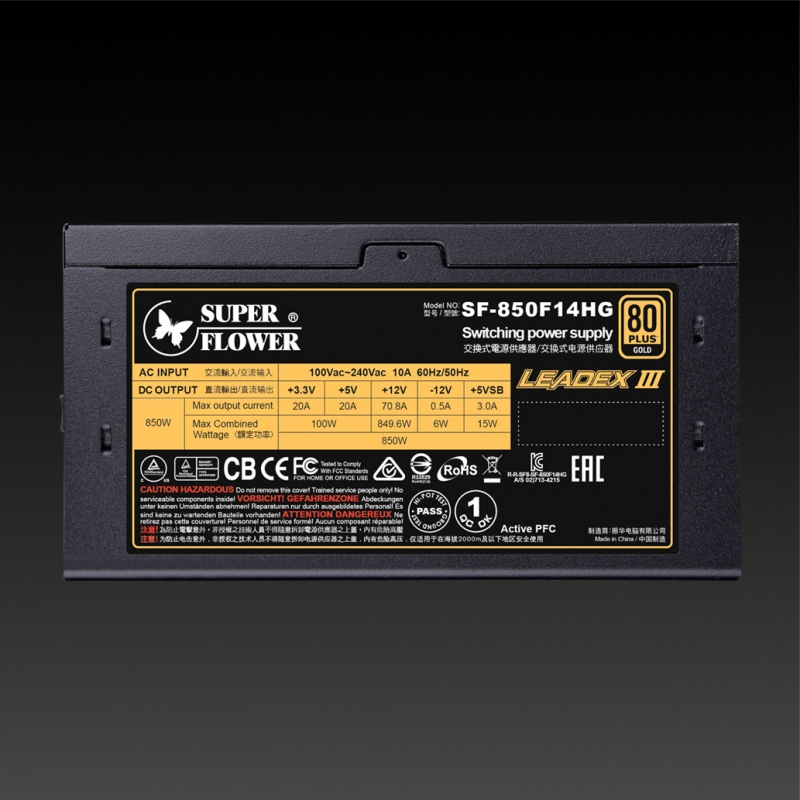

SF-850F14HG

850W		 AC INPUT 100V-240V~ 10A 60Hz/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max output Current 20A 20A 70.8A 0.5A 3.0A
Max combined Wattage 100W 849.6W 6W 15W
850W
