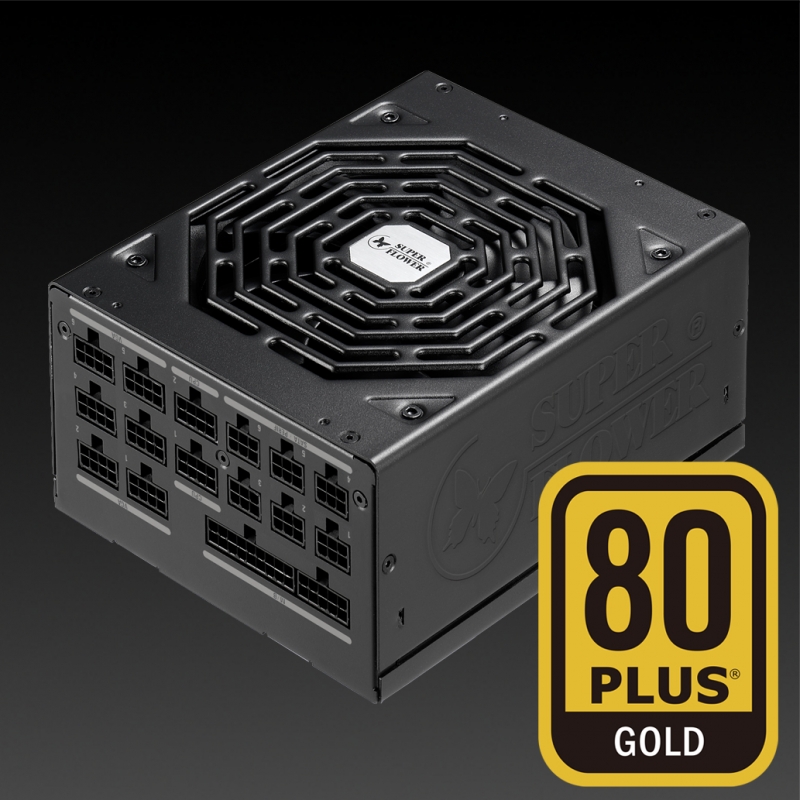

Products Name : LEADEX GOLD_Special Edition 1300W
Features
LEADEX GOLD Special Edition series PSU are 80PLUS certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX GOLD Special Edition series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
LEADEX GOLD Special Edition series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦100% Full Modular Cabling Design For Easy Cable Management.
♦80 PLUS® Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
♦Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
♦Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦100% Japanese 105°C Capacitors (Main Board).
♦Ultra Silent 140mm Dual Ball Bearing Fan.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦Exclusive Patents (Taiwan & China Patents approved. USA, Germany & Japan Patent Pending)
1.ECO Intelligent Thermal Control System. (Taiwan Application NO. 099142513；China Application NO. 201010622621.5 U.S.A,Germany,Japan Patent Pending)
2.High Power Vertical Double Layer Main Transformer (China Patent No.:ZL2009 2 0273193.2 ; Taiwan Patent No.:M381155 )
♦80 PLUS® Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
♦Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
♦Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦100% Japanese 105°C Capacitors (Main Board).
♦Ultra Silent 140mm Dual Ball Bearing Fan.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦Exclusive Patents (Taiwan & China Patents approved. USA, Germany & Japan Patent Pending)
1.ECO Intelligent Thermal Control System. (Taiwan Application NO. 099142513；China Application NO. 201010622621.5 U.S.A,Germany,Japan Patent Pending)
2.High Power Vertical Double Layer Main Transformer (China Patent No.:ZL2009 2 0273193.2 ; Taiwan Patent No.:M381155 )
♦This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
- Industrial grade server system.
- Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
- Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
Specification
| Model No. | SF-1300F14MG V1.0 | |
| Wattage | 1300W | |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) | |
| Intel Power Design Guide | V2.92 | |
| AC Input | Frequency | 100-240V | 60 / 50HZ | |
| Fan Size | 140mm Dual Ball Bearing Fan | |
| Dimension | 200mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP | |
| Safety | cTÜVus/ TÜV/ CB/ CE/ FCC/ RCM/ RoHS/ EAC | |
| Temprature | Passed 50℃ Hot Testing | |
| Cable Spec | ||
| 20+4Pin | Detachable Cables | 1 (600mm) |
| 8 (4+4)-Pin CPU | 2 (700mm) | |
| PCI-E 6+2Pin | 4 (550+150mm) | |
| SLI (2 x PCI 6+2Pin) | 2 (550+150mm) | |
| 3SATA | 4 (550+120+120mm) | |
| 3Molex | 1 (550+100+100mm) | |
| 2SATA + 1Molex | 1 (550+100+100mm) | |
| model no.: SF-1300F14MG | ||||||
| AC INPUT | 100-240Vac 15A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 1300W | Max Output Current | 24A | 24A | 108.3A | 0.5A | 3.0A |
| Max Combined Wattage | 120W | 1299.6W | 6W | 15W | ||
| 1300W | ||||||
