LEADEX PLATINUM SE 1000W
Products Name : LEADEX PLATINUM SE 1000W
LEADEX PLATINUM SE 1000W LEADEX PLATINUM SE 1000W LEADEX PLATINUM SE 1000W LEADEX PLATINUM SE 1000W LEADEX PLATINUM SE 1000W LEADEX PLATINUM SE 1000W LEADEX PLATINUM SE 1000W LEADEX PLATINUM SE 1000W LEADEX PLATINUM SE 1000W

Features

LEADEX Platinum SE series PSU are 80PLUS certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX Platinum SE series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

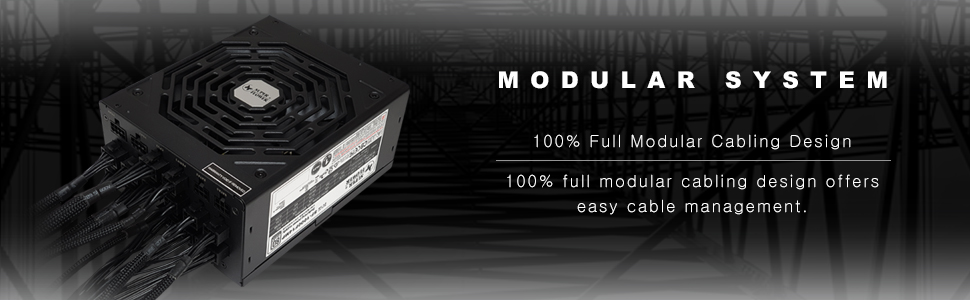

♦100% Full Modular Cabling Design For Easy Cable Management.

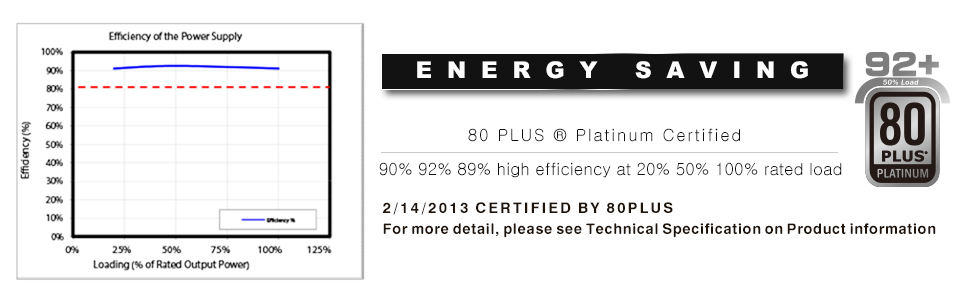

♦80 PLUS ® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
♦Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
♦Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.

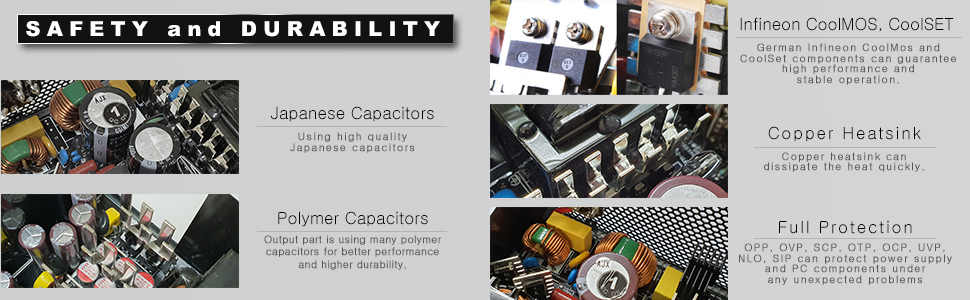

♦100% Japanese 105°C Capacitors.

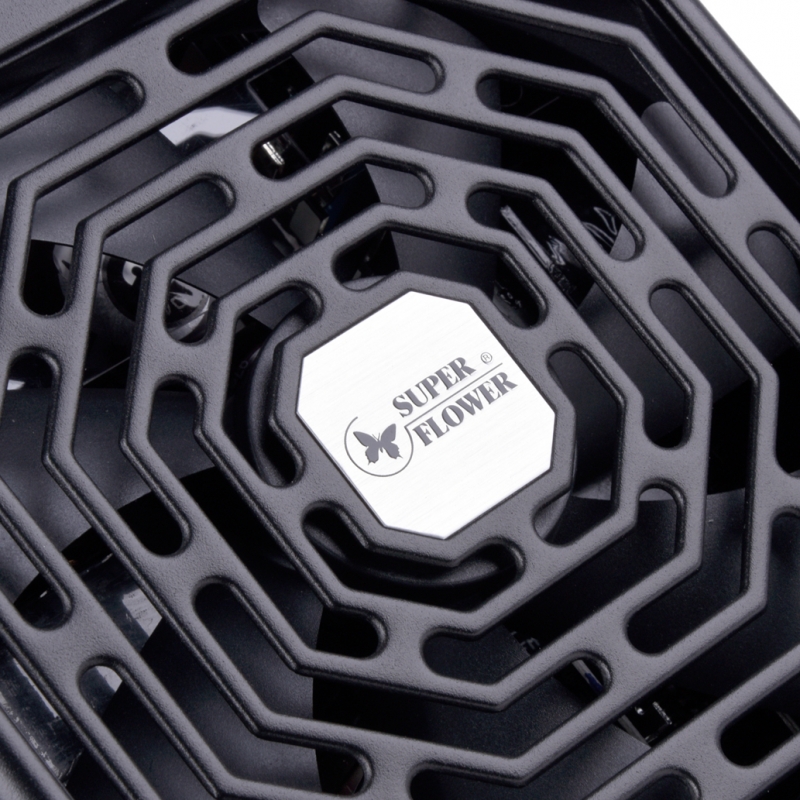

♦Ultra Silent 140mm Dual Ball Bearing Fan.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦Exclusive Patents (Taiwan & China Patents approved. USA, Germany & Japan Patent Pending)

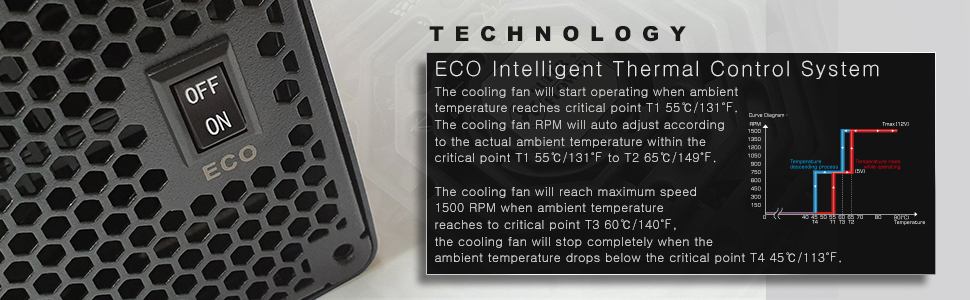

1.ECO Intelligent Thermal Control System. (Taiwan Application NO. 099142513；China Application NO. 201010622621.5 U.S.A,Germany,Japan Patent Pending)

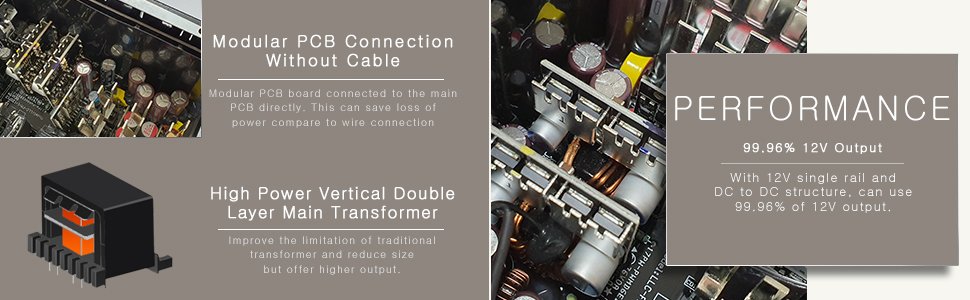

2.High Power Vertical Double Layer Main Transformer (China Patent No.:ZL2009 2 0273193.2 ; Taiwan Patent No.:M381155 )
♦This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
  • Industrial grade server system.
  • Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
  • Test equipment system (for example: memory RAM, VGA graphic card or USB device test)

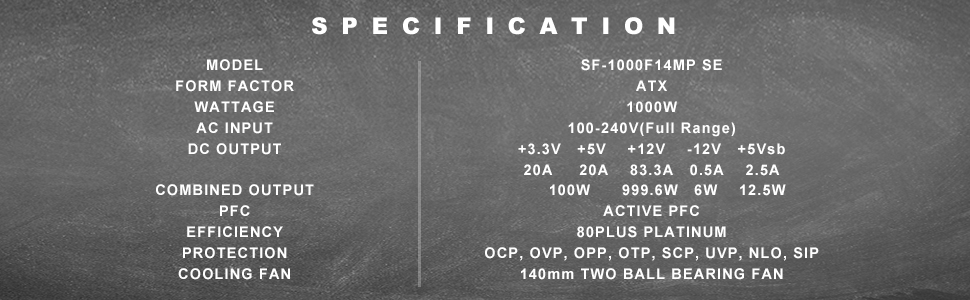

Specification

Model No. SF-1000F14MP
製品型番 LEADEX SE PLATINUM 1000W-BK
Wattage 1000W
80+ Efficiency 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum)
Intel Power Design Guide V2.92
AC Input | Frequency 100-240Vac | 60 / 50Hz
Fan Size 140mm Dual Ball Bearing Silent Fan
Dimension 180mm(L) x 150mm(W) x 86mm(H)
Protection OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP
Safety cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / EAC
Temprature Passed 50℃ Hot Testing

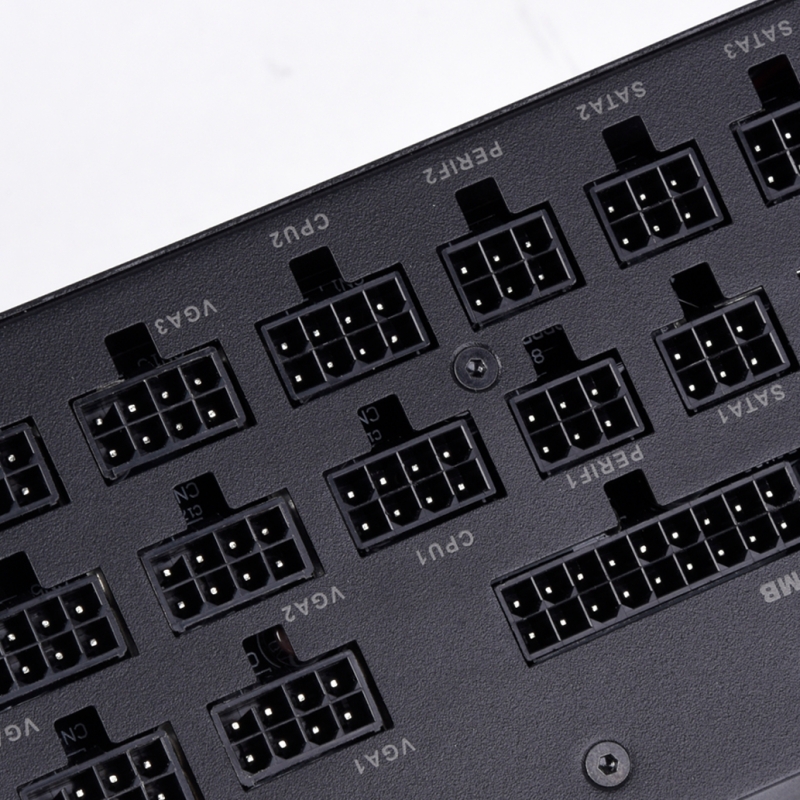

Cable Spec
20+4Pin Detachable Cables One cable (600mm)
(4+4Pin) CPU Two cables (750mm)
PCI-E 6+2Pin Four cables (750mm)
SLI (2 x PCI 6+2Pin) Two cables (750+150mm)
3SATA Two cables (550+100+100mm)
2SATA Two cables (550+100mm)
3Molex One cable (550+100+100mm)
2Molex + 1FDD One cable (550+100+100mm)

model no.: SF-1000F14MP
AC INPUT 100-240Vac 15A 60Hz/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
1000W Max output Current 20A 20A 83.3A 0.5A 2.5A
Max combined Wattage 100W 999.6W 6W 12.5W
1000W
