Features

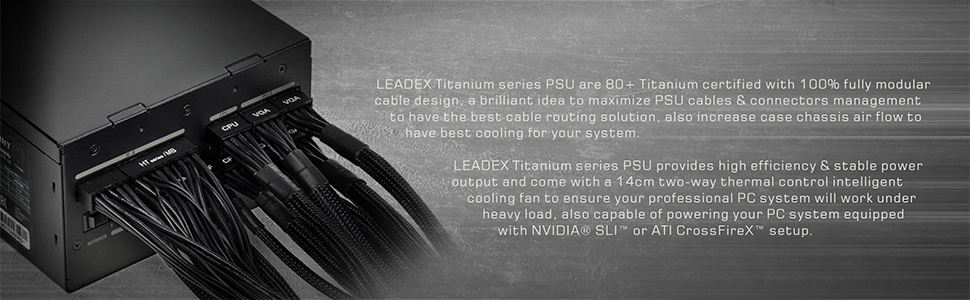

LEADEX Titanium series PSU are 80+ Titanium certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

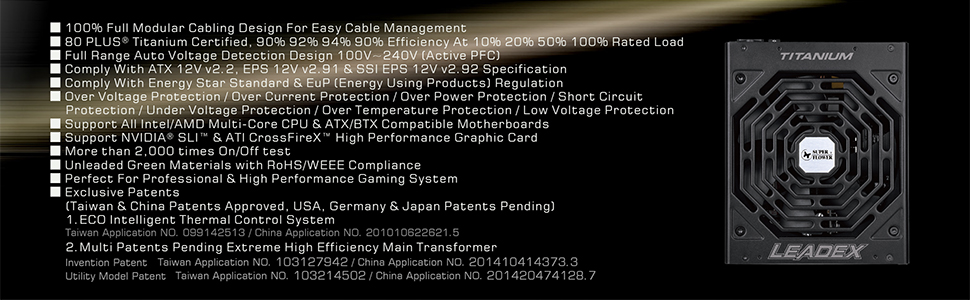

♦100% Full Modular Cabling Design For Easy Cable Management

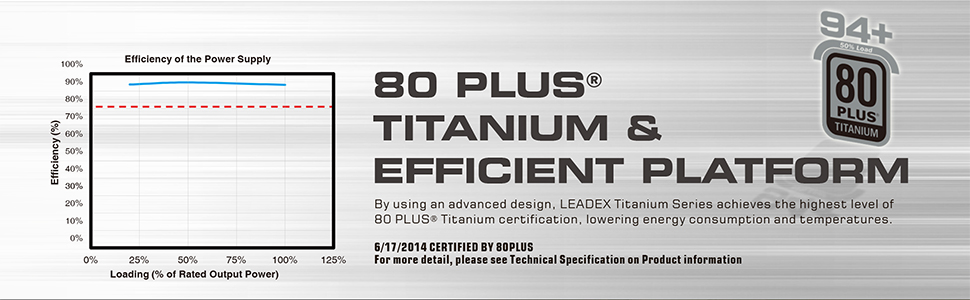

♦80 PLUS® Titanium Certified, 90% 92% 94% 90% Efficiency At 10% 20% 50% 100% Rated Load
♦Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Perfect For Professional & High Performance Gaming System
♦Exclusive Patents (Taiwan & China Patents Approved, USA, Germany & Japan Patents Pending)

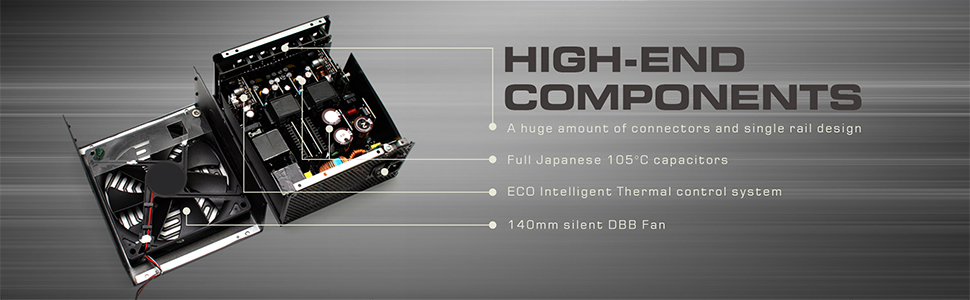

1.ECO Intelligent Thermal Control System
2.Multi Patenet Pending Extreme High Efficiency Main Transformer

Specification

Model No.	SF-750F14HT
Wattage	750W
80+ Efficiency	10%: 90%; 20%: 92% ; 50% : 94% ; 100% : 90% (115V Internal Titanium)
Intel Power Design Guide	V2.92
AC Input \| Frequency	100-240V \| 60 / 50Hz
Fan Size	140mm Two-Ball Bearing Fan
Dimension	180mm(L) x 150mm(W) x 86mm(H)
Protection	OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP
Safety	cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC
Temperature	Passed 50℃ Hot Testing
Cable Spec
20+4Pin	Detachable Cables	one cable (600mm)
(4+4Pin) CPU		two cables (700mm)
PCI-E 6+2Pin		two cables (700mm)
SLI (PCI 6+2Pin & PCI 6Pin)		two cables (700+150mm)
4SATA		one cable (550+100+100+100mm)
3SATA		two cables (550+100+100mm)
4Molex		one cable (550+100+100+100mm)
Molex to FDD Adapter		one cable (100mm)

model no.: SF-750F14HT
AC INPUT		100-240Vac 10A 60Hz/50Hz
DC OUTPUT		+3.3V	+5V	+12V	-12V	+5VSB
750W	Max output Current	20A	20A	62.4A	0.5A	2.5A
	Max combined Wattage	100W		748.8W	6W	12.5W

		750W
