Power Supply - LEADEX PLATINUM / LEADEX PLATINUM 2000W

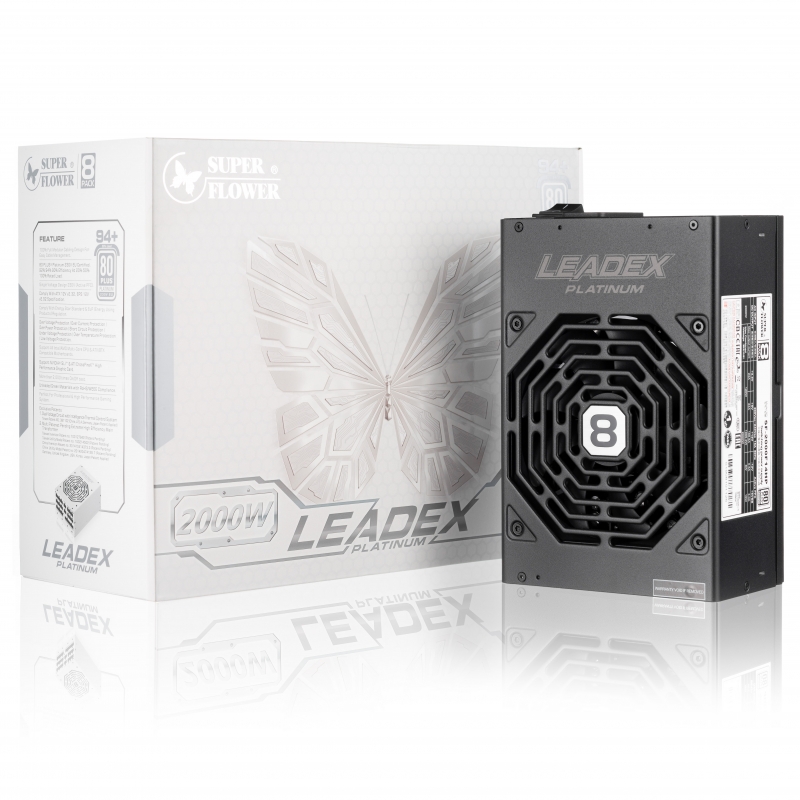

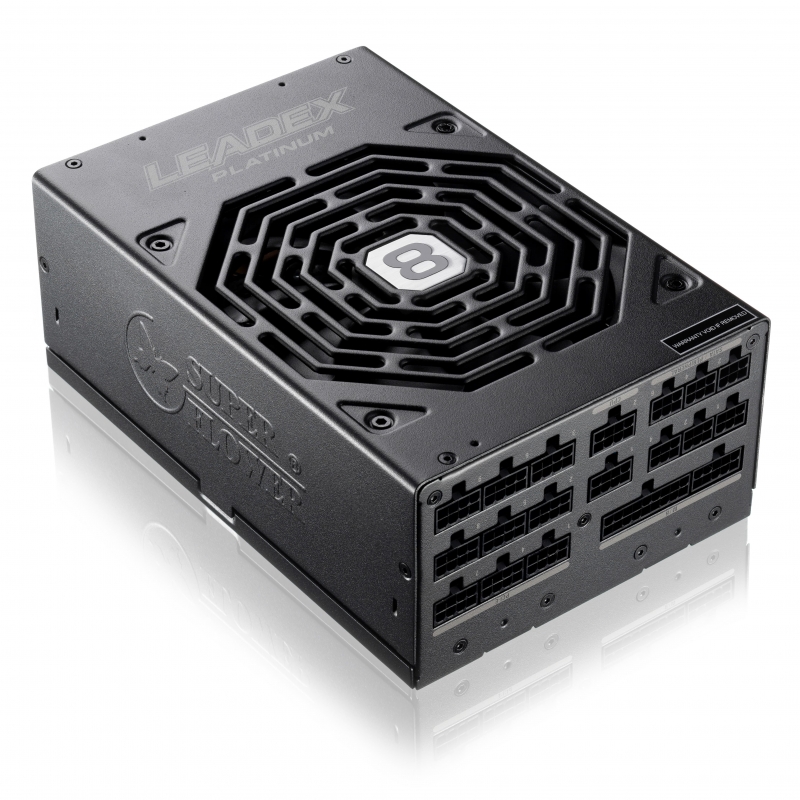

LEADEX PLATINUM 2000W
Products Name : LEADEX PLATINUM 2000W
LEADEX PLATINUM 2000W LEADEX PLATINUM 2000W LEADEX PLATINUM 2000W LEADEX PLATINUM 2000W LEADEX PLATINUM 2000W LEADEX PLATINUM 2000W LEADEX PLATINUM 2000W LEADEX PLATINUM 2000W LEADEX PLATINUM 2000W

  • Features
  • Specification
  • Overview
  • Downloads
  • Reviews & Awards

  • Features
  • Specification
  • Overview
  • Downloads
  • Reviews & Awards

Features

LEADEX Platinum series PSU are 80+ Platinum certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

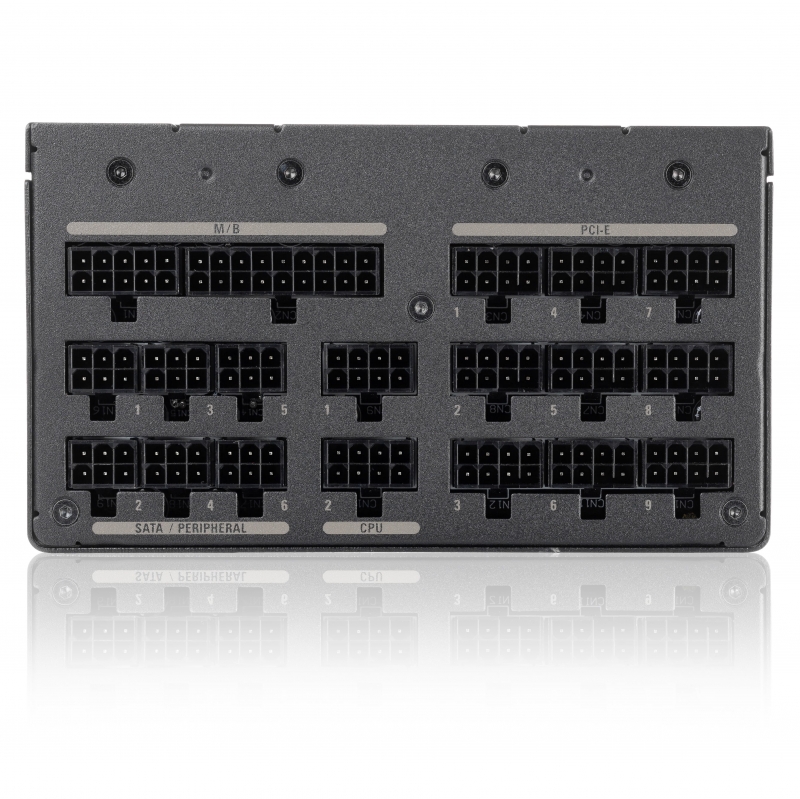

♦100% Full Modular Cabling Design For Easy Cable Management.

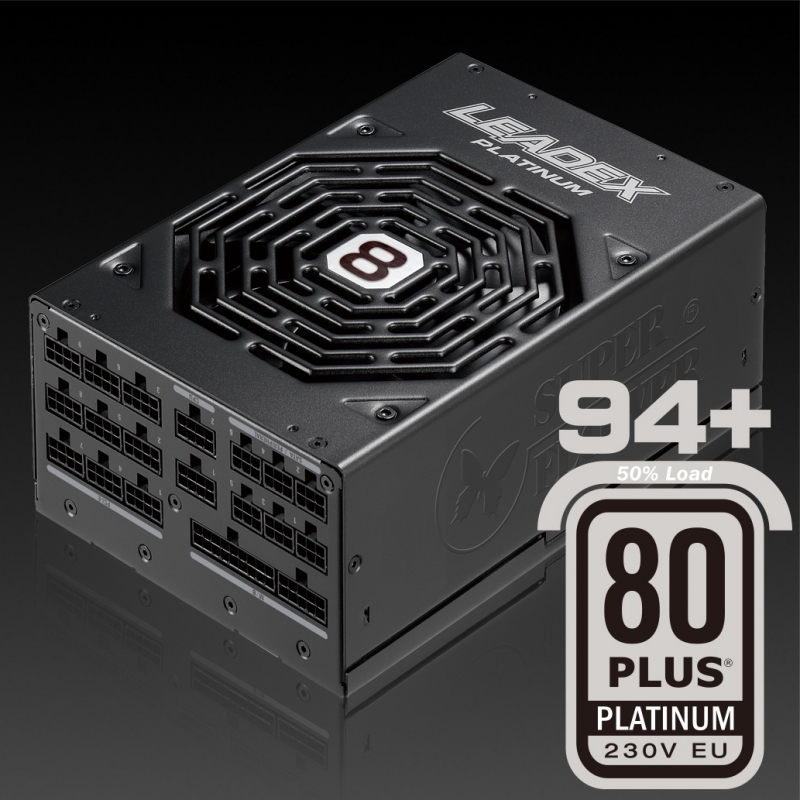

♦80 PLUS® Platinum 230V EU Certified,92% 94% 90% Efficiency At 20% 50% 100% Rated Load.
♦Single Voltage Design 230V (Active PFC).
♦Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection /Under Voltage Protection / Over Temperature Protection / Low Voltage Protection /
No Load Operation / Surge & Inrush Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design.
♦Exclusive Patents
1.Dual Voltage Circuit with IntelligenceThermal Control System (Taiwan Patent NO.:381102 (China,U.S.A,Germany,Japan patent applied))
2.Multi Patenet Pending Extreme High Efficiency Main Transformer
Taiwan Invention Patent no: 103127942 (Patent Pending)
Taiwan Utility Model Patent no: 103214502 (Patent Pending)
China Invention Patent no: 201410414373.3 (Patent Pending)
China Utility Model Patent no: 201420474128.7 (Patent Pending)
Germany, United Kingdom, USA, Korea, Japan Patent Applied
♦This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
  • Industrial grade server system.
  • Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
  • Test equipment system (for example: memory RAM, VGA graphic card or USB device test)

Specification

Model No. SF-2000F14HP
Wattage 2000W
80+ Efficiency 92% 94% 90% Efficiency At 20% 50% 100% Rated Load (230V EU Internal Platinum)
Intel Power Design Guide V2.92
AC Input | Frequency Single Voltage 230V | 60 / 50Hz
Fan Size 140mm Two-Ball Bearing Fan
Dimension 220mm(L) x 150mm(W) x 86mm(H)
Protection OVP / OCP / OPP / SCP / UVP / LVP / OTP / NLO / SIP
Safety TÜV / CB / CE / EAC / RoHS / KCC / CQC
Temperature Passed 50℃ Hot Testing
Cable Spec
20+4Pin Detachable Cables one cable(600mm)
(4+4Pin) CPU two cables(750mm)
PCI-E 6+2Pin four cables(750mm)
SLI ( PCI 6+2Pin+PCI 6Pin) five cables(750+150mm)
4SATA four cables(550+100+100+100mm)
3Molex two cables(550+100+100mm)
Molex to FDD Adapter two cables(100mm)

Overview

model no.: SF-2000F14HP(230V EU)
AC INPUT 200-240Vac 15A 60/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
2000W Max output Current 24A 24A 166.6A 0.5A 3.0A
Max combined Wattage 120W 1999.2W 6W 15W
2000W

Downloads

Reviews & Awards

  • 80 PLUS certification information, please refer to the below link : SF-2000F14HP
