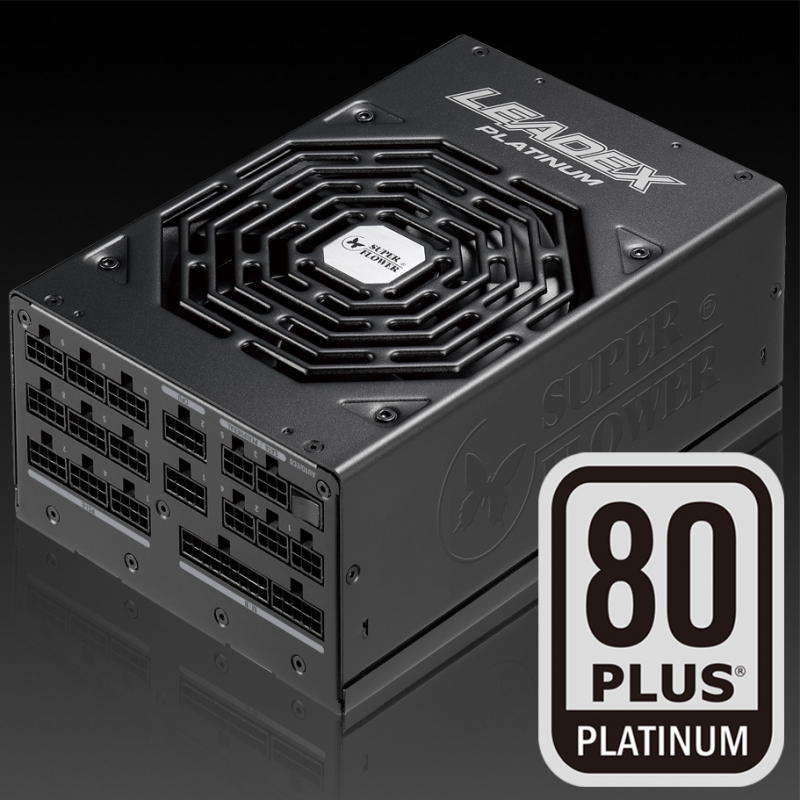

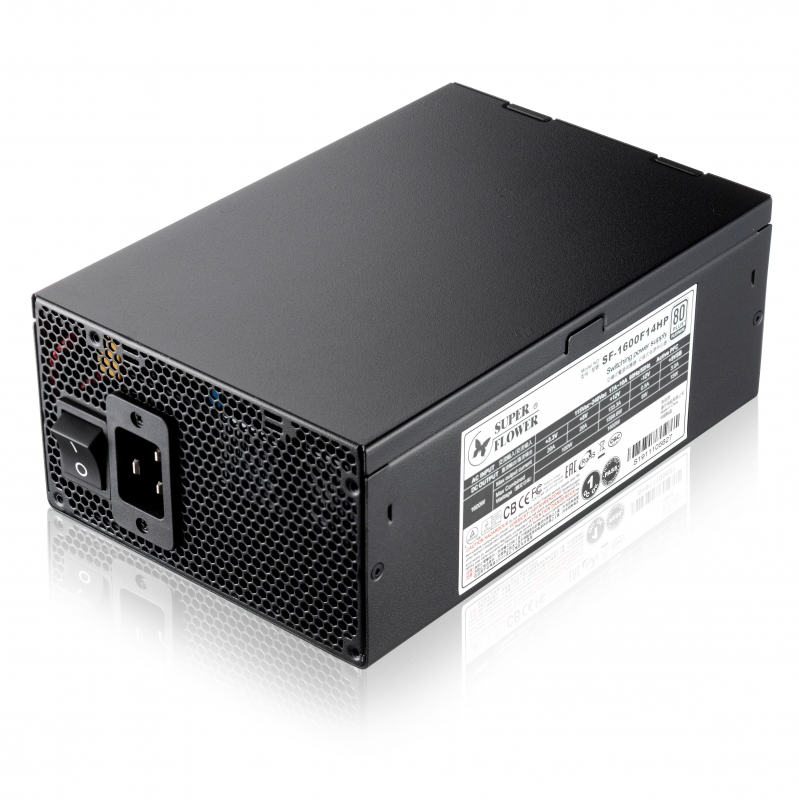

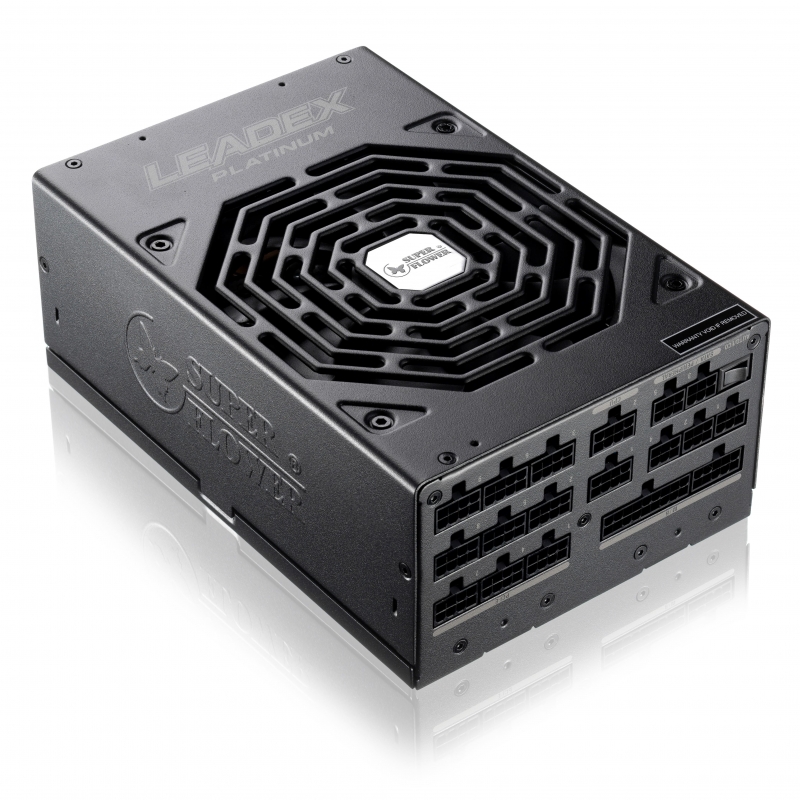

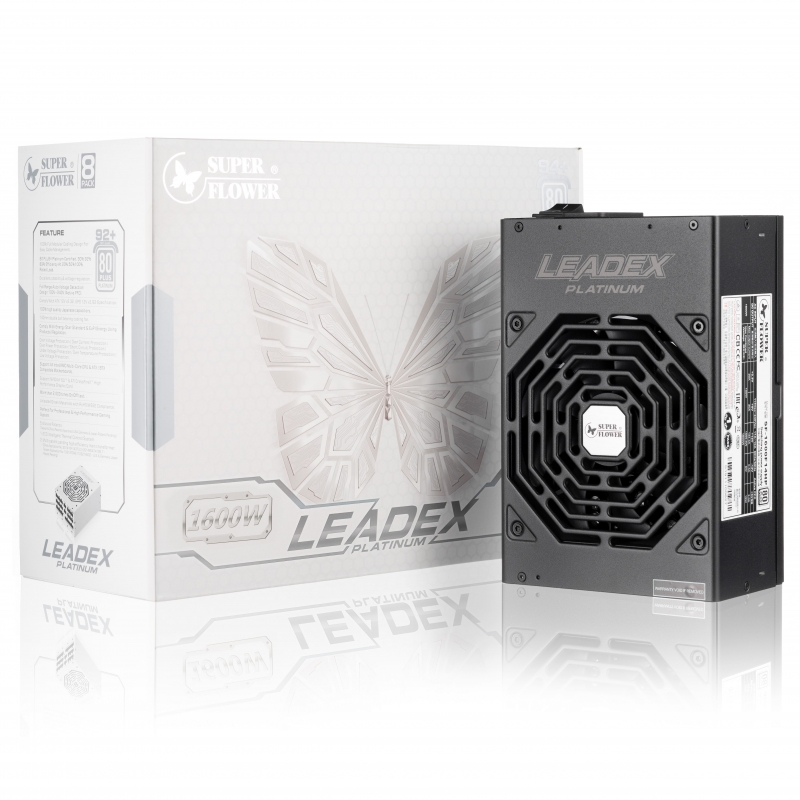

Products Name : LEADEX PLATINUM 1600W
Features
LAEDEX Platinum series PSU are 80+ Platinum certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

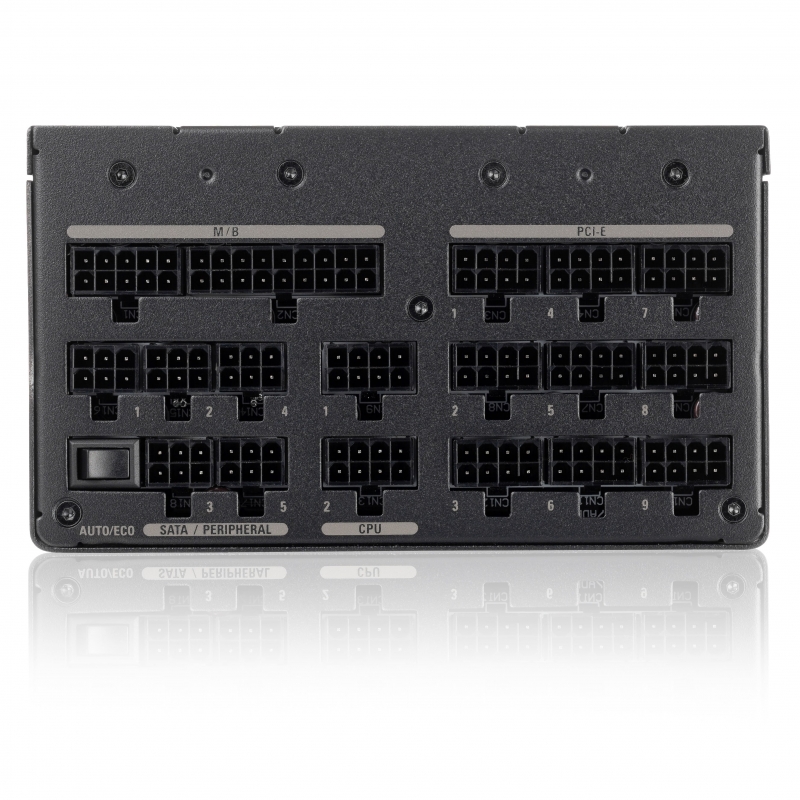

♦ 100% Full Modular Cabling Design For Easy Cable Management.
♦ 80 PLUS ® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
♦ Excellent stability & voltage regulation.
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
♦ Comply With ATX 12V v2.32 & SSI EPS 12V v2.92 Specification.
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦ 100% high quality Japanese capacitors.
♦ 140mm double ball bearing cooling fan.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection /Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦ Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦ More than 2,000 times On/Off test.
♦ Unleaded Green Materials with RoHS/WEEE Compliance.
♦ Perfect For Professional & High Performance Gaming System.
♦ Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design.
♦ Exclusive Patents(Taiwan & China Patents Approved,USA,Germany & Japan Patent Pending)
1.ECO Intelligent Thermal Control System.
2.Multi patent pending high efficiency main transformer.
(China Application No: 201410414373.3 / 201420474128.7；Taiwan Application No: 103127942 / 103214502；U.S.A, Germany, Japan Patent Pending)
♦ 80 PLUS ® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
♦ Excellent stability & voltage regulation.
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
♦ Comply With ATX 12V v2.32 & SSI EPS 12V v2.92 Specification.
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦ 100% high quality Japanese capacitors.
♦ 140mm double ball bearing cooling fan.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection /Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦ Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦ More than 2,000 times On/Off test.
♦ Unleaded Green Materials with RoHS/WEEE Compliance.
♦ Perfect For Professional & High Performance Gaming System.
♦ Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design.
♦ Exclusive Patents(Taiwan & China Patents Approved,USA,Germany & Japan Patent Pending)
1.ECO Intelligent Thermal Control System.
2.Multi patent pending high efficiency main transformer.
(China Application No: 201410414373.3 / 201420474128.7；Taiwan Application No: 103127942 / 103214502；U.S.A, Germany, Japan Patent Pending)
♦This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
- Industrial grade server system.
- Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
- Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
Specification
| Model No. | SF-1600F14HP | |
| Wattage | 1600W | |
| 80+ Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) | |
| Intel Power Design Guide | V2.92 | |
| AC Input | Frequency | 115-240V | 60 / 50Hz | |
| Fan Size | 140mm Two-Ball Bearing Fan | |
| Dimension | 220mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / OPP / SCP / UVP / LVP / OTP / NLO / SIP | |
| Safety | cTÜVus / TÜV / CB / CE / FCC / EAC / RoHS / CQC | |
| Temperature | Passed 50℃ Hot Testing | |
| Cable Spec | ||
| 20+4Pin | Detachable Cables | one cable (600mm) |
| (4+4Pin) CPU | two cables (750mm) | |
| PCI-E 6+2Pin | four cables (750mm) | |
| SLI (PCI 6+2Pin & PCI 6Pin) | five cables (750+150mm) | |
| 4SATA | three cables (550+100+100+100mm) | |
| 2SATA+2Molex | one cable(550+100+100+100mm) | |
| 3Molex | one cable (550+100+100mm) | |
| Molex to FDD Adapter | two cables (100mm) | |
Overview

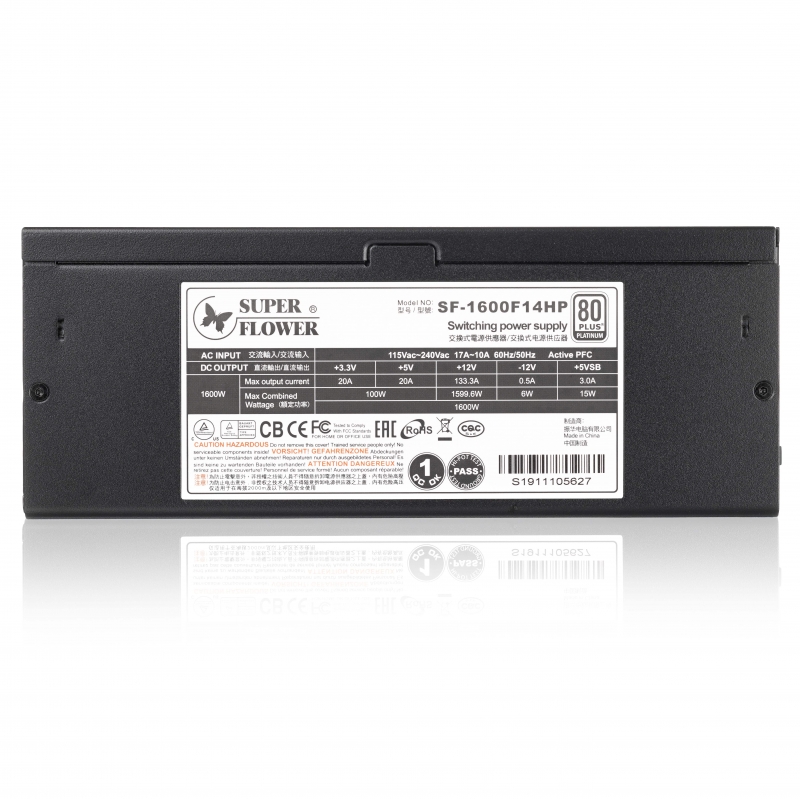

| model no.: SF-1600F14HP | ||||||
| AC INPUT | 115-240Vac 17-10A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 1600W | Max output Current | 20A | 20A | 133.3A | 0.5A | 3.0A |
| Max combined Wattage | 100W | 1599.6W | 6W | 15W | ||
| 1600W | ||||||
Downloads
Reviews & Awards
- 80 PLUS certification information, please refer to the below link : SF-1600F14MP
