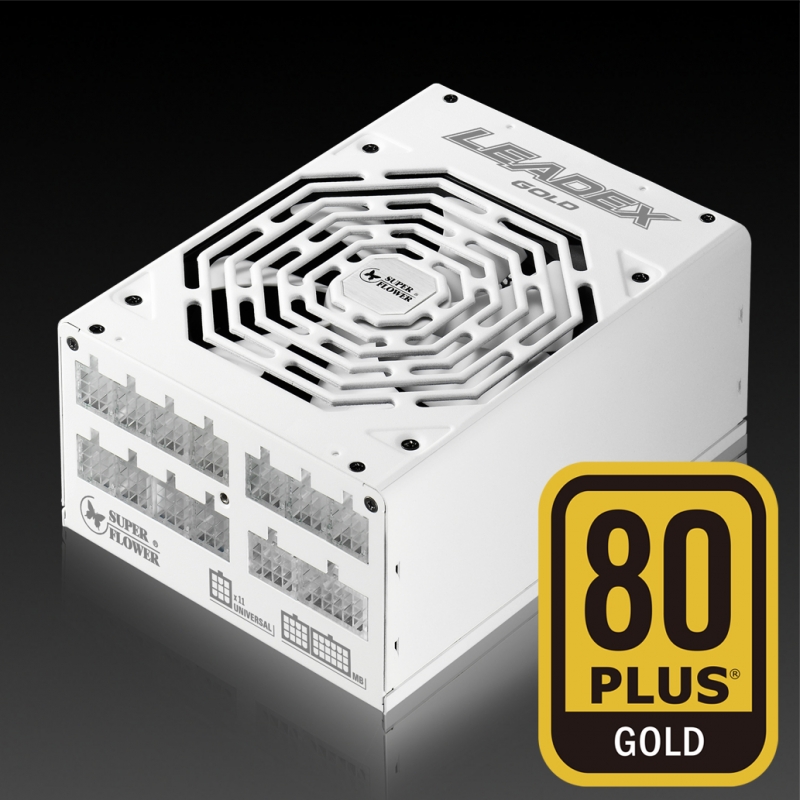

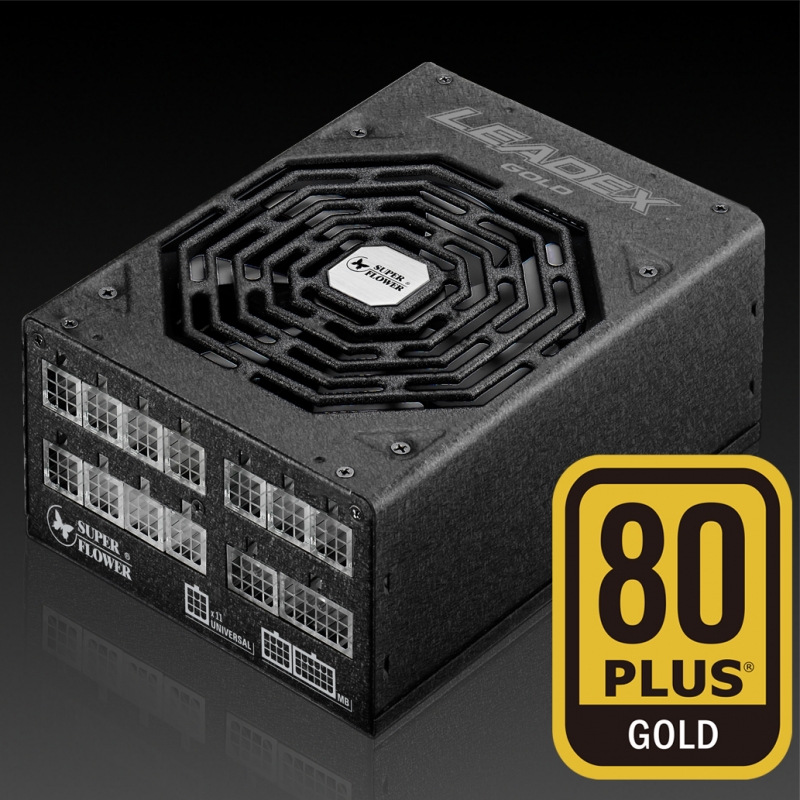

Products Name : LEADEX Gold 1300W
Features
LEADEX Gold series PSU are 80+ Gold certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

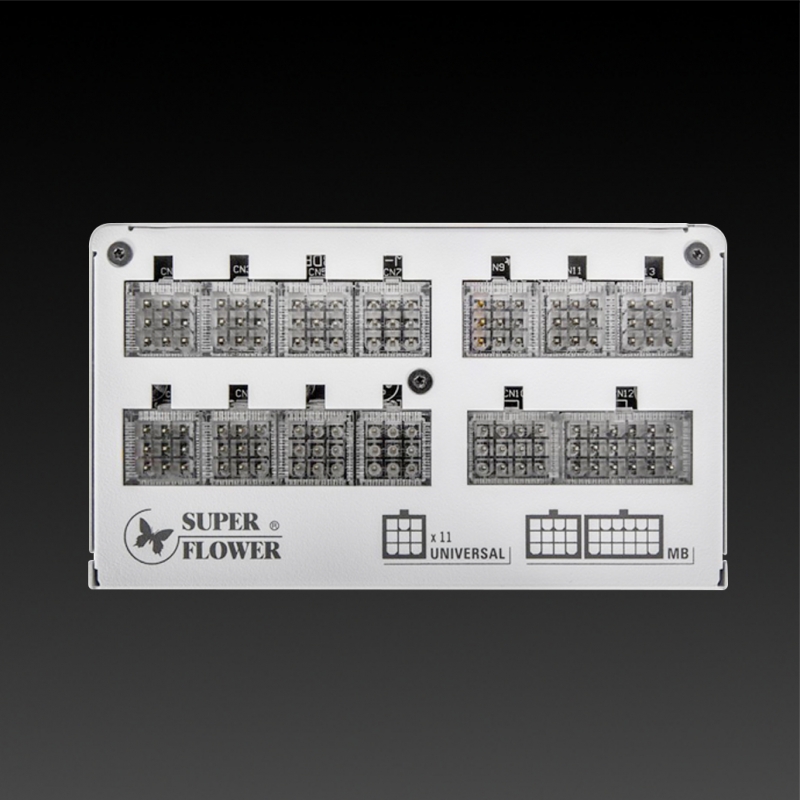

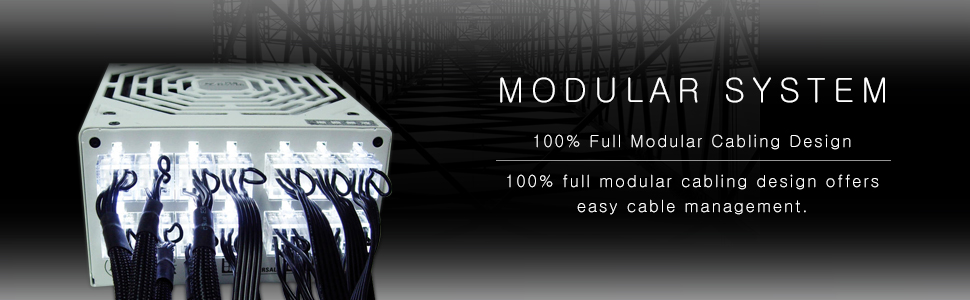

♦ 100% Full Modular Cabling Design For Easy Cable Management

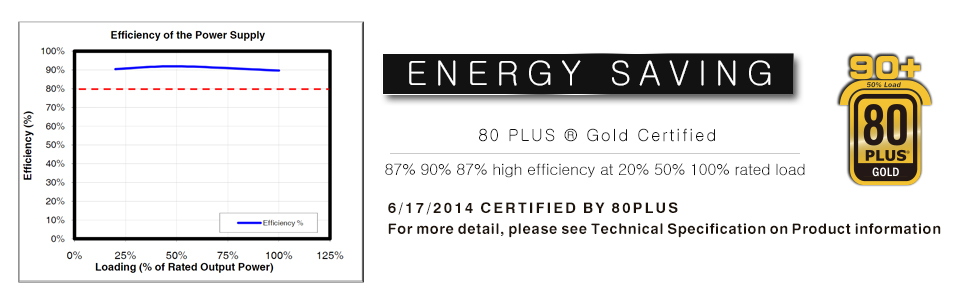

♦ 80 PLUS ® Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load

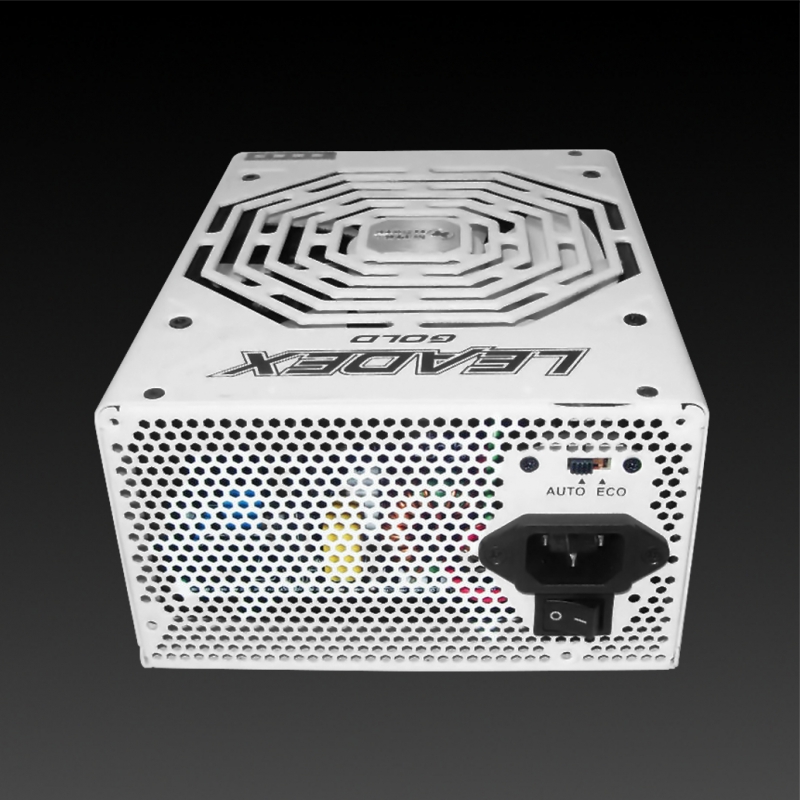

♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection
♦ Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ Patented Easy To Use & Install Crystal Clear Cube Connectors with LED
♦ More than 2,000 times On/Off test
♦ Unleaded Green Materials with RoHS/WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
♦ Exclusive Patents (Taiwan & China Patents approved. USA, Germany & Japan Patent Pending)

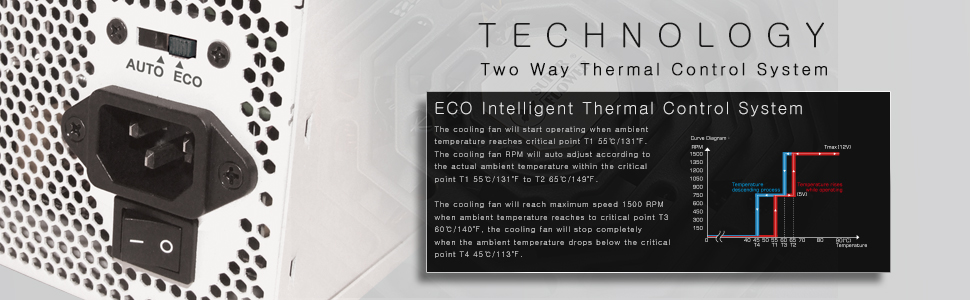

1.ECO Intelligent Thermal Control System. (Taiwan Application NO. 099142513；China Application NO. 201010622621.5 U.S.A,Germany,Japan Patent Pending)

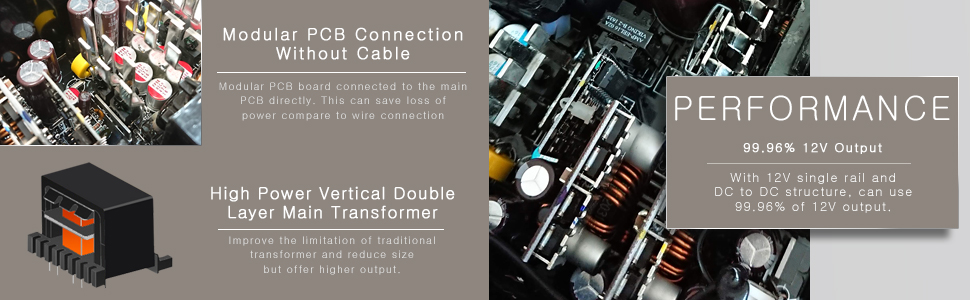

2.High Power Vertical Double Layer Main Transformer (China Patent No.:ZL2009 2 0273193.2 ; Taiwan Patent No.:M381155 )
♦ 80 PLUS ® Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection
♦ Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ Patented Easy To Use & Install Crystal Clear Cube Connectors with LED
♦ More than 2,000 times On/Off test
♦ Unleaded Green Materials with RoHS/WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
♦ Exclusive Patents (Taiwan & China Patents approved. USA, Germany & Japan Patent Pending)
1.ECO Intelligent Thermal Control System. (Taiwan Application NO. 099142513；China Application NO. 201010622621.5 U.S.A,Germany,Japan Patent Pending)
2.High Power Vertical Double Layer Main Transformer (China Patent No.:ZL2009 2 0273193.2 ; Taiwan Patent No.:M381155 )

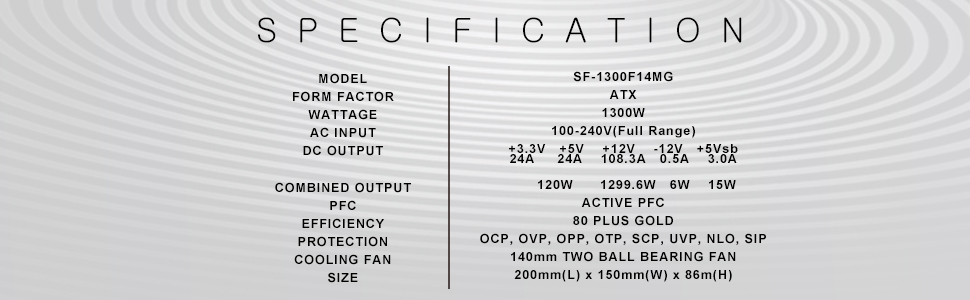

Specification
| Model No. | SF-1300F14MG | |
| Wattage | 1300W | |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) | |
| Intel Power Design Guide | V2.92 | |
| AC Input | Frequency | 100V~240V | 60 / 50HZ | |

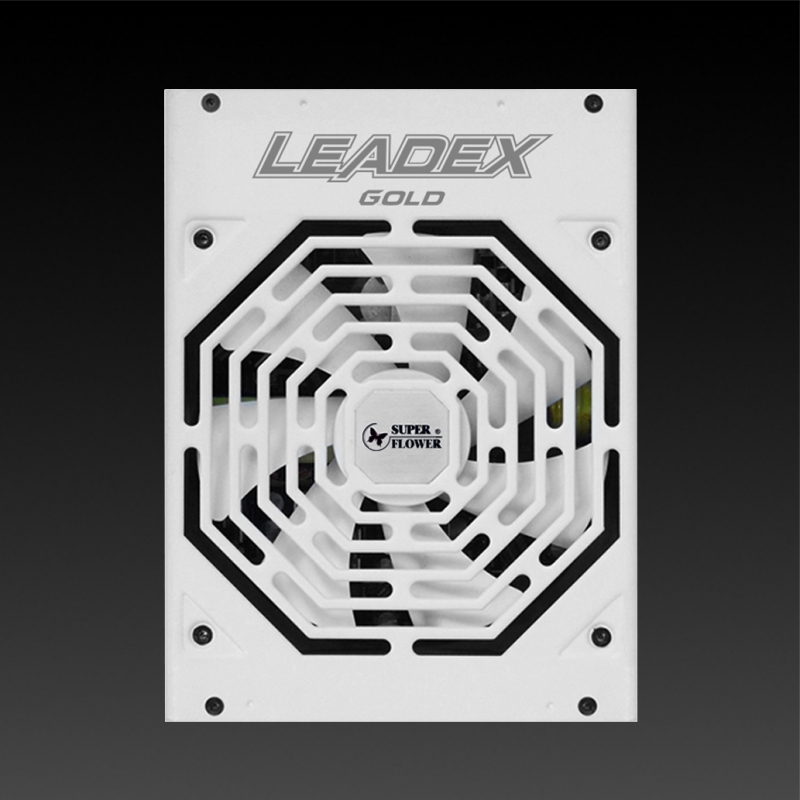

| Fan Size | 140mm F.D.B. Cooling Fan | |
| Dimension | 200mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / OPP / SCP / UVP | |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC / CCC | |
| Temperature | Passed 50℃ Hot Testing | |
| Cable Spec | ||
| 20+4Pin | Detachable Cables | one cable(600mm) |
| (4+4Pin) CPU | two cables(700mm) | |
| PCI-E 6+2Pin | two cables(600mm) | |
| SLI (2 x PCI 6+2Pin) | three cables(600+130mm) | |
| 4SATA | two cables(550+130+130+130mm) | |
| 2SATA+2Molex | one cable(550+130+130+130mm) | |
| 3Molex+1FDD | one cable(550+130mm) | |

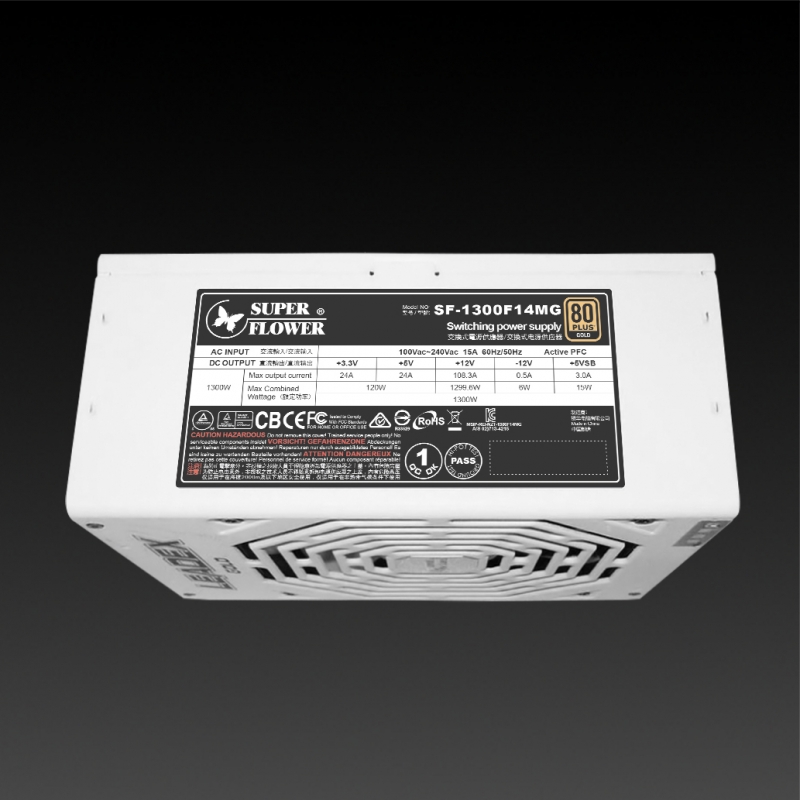

| model no.: SF-1300F14MG | ||||||
| AC INPUT | 100Vac~240Vac 15A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 1300W | Max output Current | 24A | 24A | 108.3A | 0.5A | 3.0A |
| Max combined Wattage | 120W | 1299.6W | 6W | 15W | ||
| 1300W | ||||||
Overview
Downloads
Reviews & Awards
- 80 PLUS certification information, please refer to the below link : SF-1300F14MG
