Power Supply - Phased out / Platinum King 450W

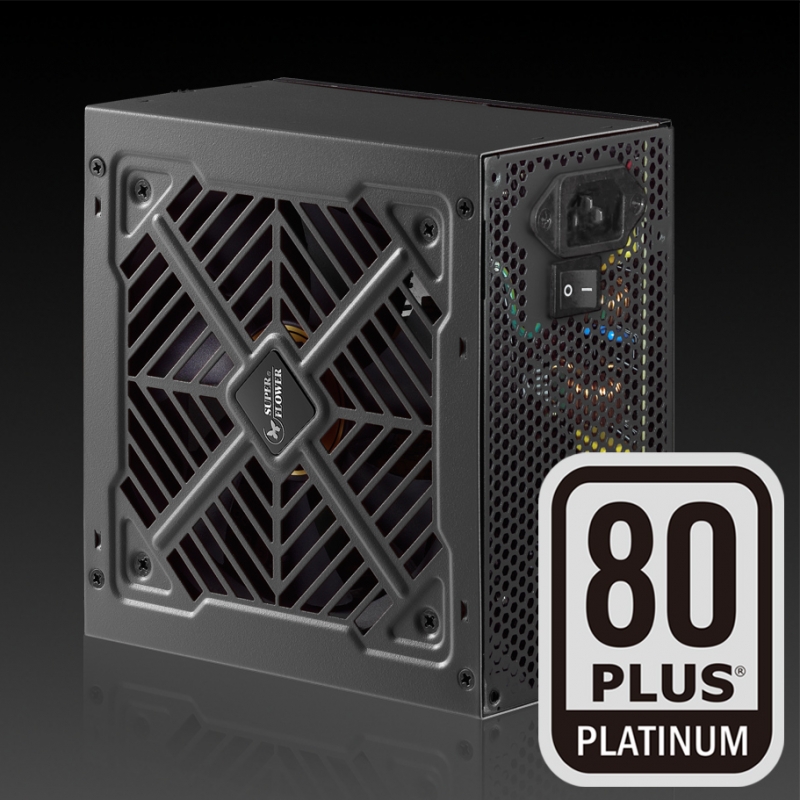

Platinum King 450W
Products Name : Platinum King 450W
Platinum King 450W

Features

Platinum King series PSU are 80+ Platinum certified with fixed cable design, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
Platinum King series PSU provides high efficiency & stable power output and come with a 12cm cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦80 PLUS® 115V Internal Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
♦Fourth-Generation Intel® Haswell™ CPU Compatible.
♦Full Range Auto Voltage Detection Design from 100V ~ 240V (Active PFC).
♦Comply With ATX 12V v2.32, EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦Over Power Protection / Under Voltage Protection / Over Voltage Protection / Short Circuit Protection / Over Current Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦DC to DC Converter & High Quality Solid Capacitors.
♦JAPANESE Capacitor.
♦German well-known Brand “infineon ”Low Rds (on) Cool Mos.
♦Exclusive Patent (Taiwan & China Patents Approved. USA, Germany & Japan Patents Pending)
1.Multi Patenet Pending Extreme High Efficiency Main Transformer (Taiwan Invention Patent no: 103127942 ; Taiwan Utility Model Patent no: 103214502 ; China Invention Patent no: 201410414373.3 ; China Utility Model Patent no: 201420474128.7 (Patent Pending) ; Germany, United Kingdom, USA, Korea, Japan Patent Applied)
2.Dual Voltage Circuit with Intelligence Thermal Control System (Taiwan Patent No:M381102)

Specification

Model No. SF-450P14PE
Wattage 450W
Efficiency 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum)
Intel Power Design Guide V2.92
AC Input | Frequency 100V~240V | 60 / 50Hz
Fan Size 120mm Long Life Silent Fan
Dimension 145mm(L) x 150mm(W) x 86mm(H)
Protection OVP / OPP / SCP / UVP / OCP
Safety cTÜVus / TÜV / CB / CE / FCC / RoHS / KCC / EAC
Temperature Passed 50℃ Hot Testing
Cable Spec
20+4Pin Fixed Cables one cable
(4+4Pin) CPU one cable
SLI (2 x PCI 6+2Pin) one cable
3SATA + 1Molex one cable
2SATA+ 2Molex one cable

Overview

model no.: SF-450P14PE
AC INPUT 115-240Vac 10A 60Hz/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
450W Max output Current 20A 20A 37A 0.5A 2.5A
Max combined Wattage 100W 444W 6W 12.5W
450W

Downloads

Reviews & Awards

  • 80 PLUS certification information, please refer to the below link: SF-450P14PE
