Products Name : LEADEX Silver 750W
Features
LEADEX Silver series PSU are 80+ 230V EU internal silver certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦100% Full Modular Cabling Design For Easy Cable Management
♦80 PLUS ® 230V EU Internal Silver Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
♦High Performance 230V AC Input (Active PFC)
♦Comply With ATX 12V v2.32, SSI EPS 12V v2.92 Specification
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Over Temperature Protection / Under Voltage Protection
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Perfect For Professional & High Performance Gaming System.
♦Exclusive Patents (Taiwan & China Patents Approved,USA,Germany & Japan Patents Pending)
1.ECO Intelligent Thermal Control System.
2.High Power Vertical Double Layer Main Transformer(China Patent No.:ZL2009 2 0273193.2 ;Taiwan Patent No.:M381155 )
♦80 PLUS ® 230V EU Internal Silver Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
♦High Performance 230V AC Input (Active PFC)
♦Comply With ATX 12V v2.32, SSI EPS 12V v2.92 Specification
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Over Temperature Protection / Under Voltage Protection
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Perfect For Professional & High Performance Gaming System.
♦Exclusive Patents (Taiwan & China Patents Approved,USA,Germany & Japan Patents Pending)
1.ECO Intelligent Thermal Control System.
2.High Power Vertical Double Layer Main Transformer(China Patent No.:ZL2009 2 0273193.2 ;Taiwan Patent No.:M381155 )
Specification
| Model No. | SF-750F14MT | |
| Wattage | 750W | |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (230V EU Internal Silver) | |
| Intel Power Design Guide | v2.92 | |
| AC Input | Frequency | 220V-240V~ | 50 / 60HZ | |
| Fan Size | 140mm Long Life Silent Fan | |
| Dimension | 165mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / OPP / SCP / OTP / UVP / SVP | |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RoHS / KCC | |
| Temperature | Passed 50℃ Hot Testing | |

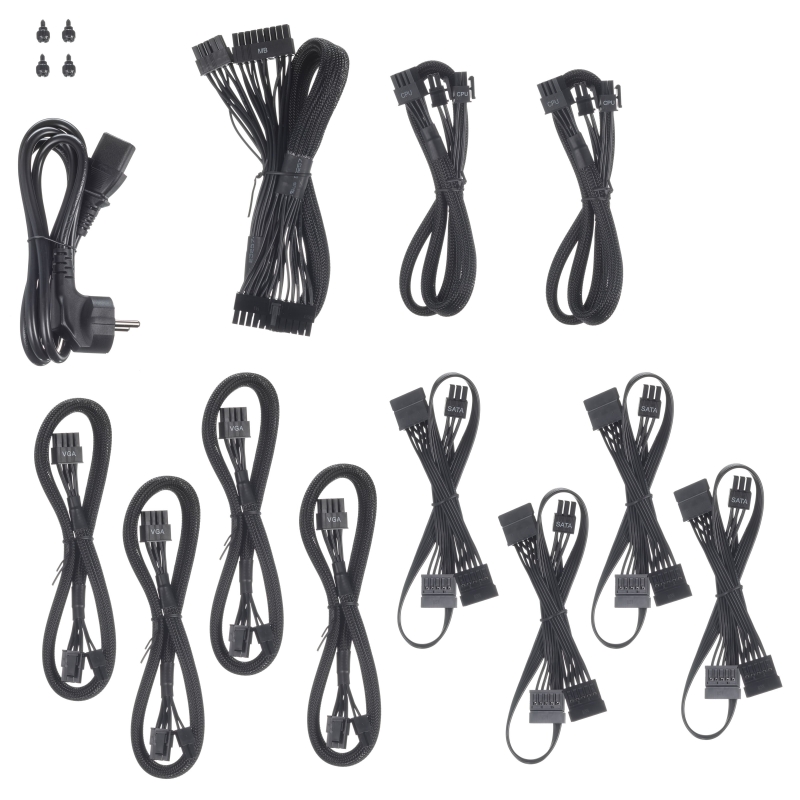

| Cable Spec | ||
| 20+4Pin | Detachable Cables | one cable (550mm) |
| (4+4Pin) CPU | two cables (650mm) | |
| PCI-E 6+2Pin | four cables (550mm) | |
| 3SATA | three cables (500+100+100mm) | |
| 4Molex | one cable (500+100+100+100mm) | |
Overview

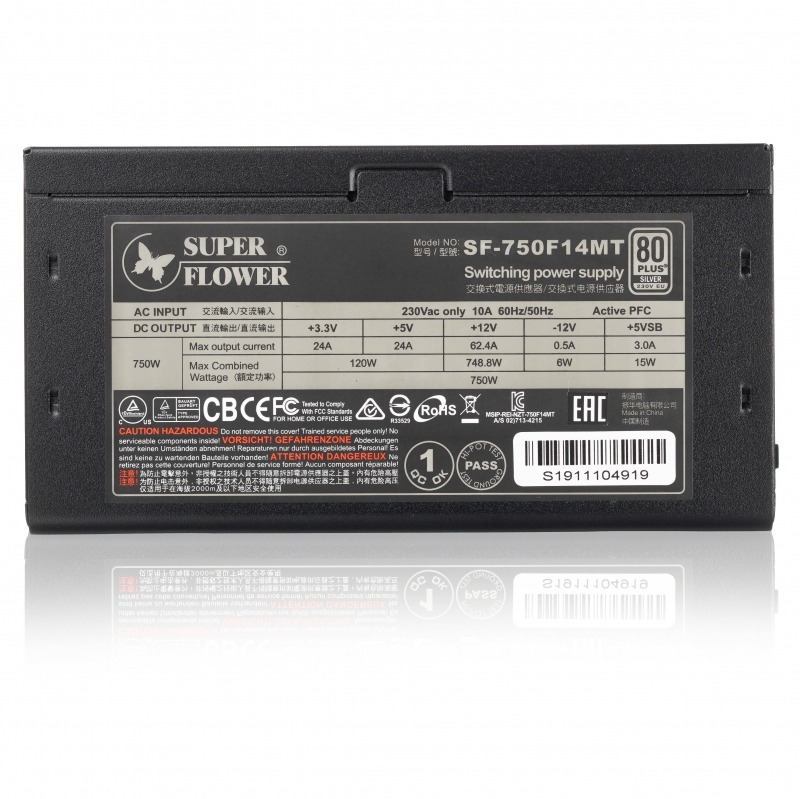

| Model no.: SF-750F14MT | ||||||
| AC INPUT | 200Vac~240Vac 10A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 750W | Max output Current | 24A | 24A | 62.4A | 0.5A | 3.0A |
| Max combined Wattage | 120W | 748.8W | 6W | 15W | ||
| 750W | ||||||
Downloads
Reviews & Awards
- 80 PLUS certification information, please refer to the below link: SF-75F14MT
