Power Supply - Phased out / Silver ECO 500W

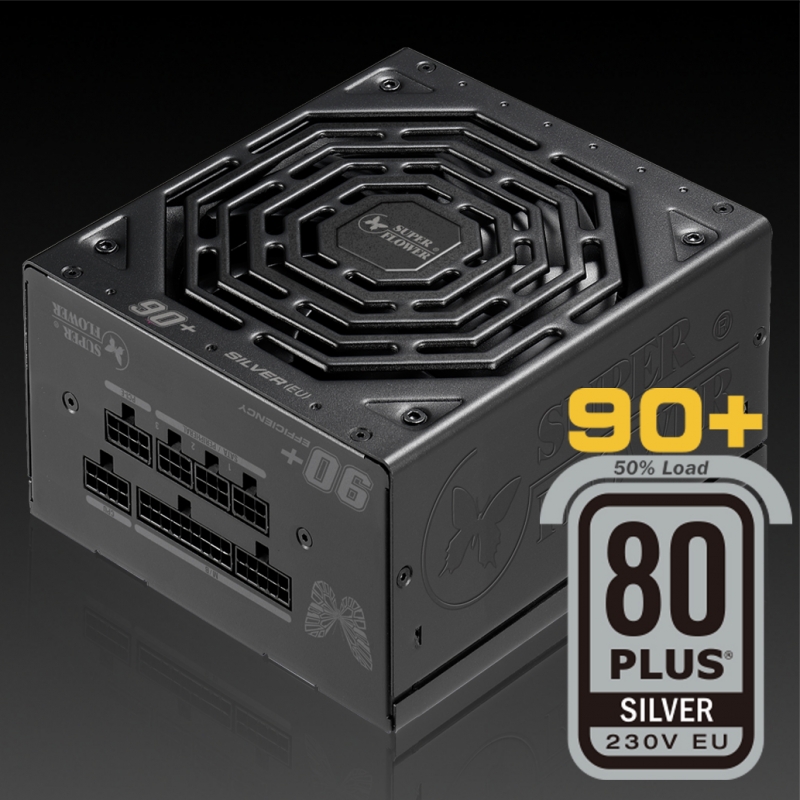

Silver ECO 500W
Products Name : Silver ECO 500W
Silver ECO 500W

Features

Silver ECO series PSU are 80+ 230V EU internal silver certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
Silver ECO series PSU provides high efficiency & stable power output and come with a 13cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦100% Full Modular Cabling Design For Easy Cable Management
♦80 PLUS ®(230V EU Internal ) Silver Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
♦High Performance 230V AC Input (Active PFC)
♦Comply With ATX 12V v2.32, EPS 12V v2.92 Specification.
♦Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Temperature Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Perfect For Professional & High Performance Gaming System
♦Exclusive Patent (Taiwan & China Patents Approved. USA, Germany & Japan Patents Pending)
1.ECO Intelligent Thermal Control System.
2.High Power Vertical Double Layer Main Transformer (China Patent No.:ZL2009 2 0273193.2 ;Taiwan Patent No.:M381155 )

Specification

Model No. SF-500P14MS
Wattage 500W
80+ Efficiency 20%: 87% ; 50% : 90% ; 100% : 87% (230V EU Internal Silver)
Intel Power Design Guide V2.92
AC Input | Frequency 220V~240V | 50 / 60HZ
Fan Size 130mm Long Life Silent Fan
Dimension 150mm(L) x 150mm(W) x 86mm(H)
Protection OVP、OTP、OCP、OPP、SCP、UVP
Safety TÜV / CE / RoHS / KCC / EAC
Temperature Passed 50℃ Hot Testing
Cable Spec
20+4Pin Full Modular one cable
(4+4Pin) CPU one cable
SLI (2 x PCI 6+2Pin) one cable
3SATA one cable
2SATA+1Molex one cable
2Molex one cable

Overview

model no.: SF-500P14MS
AC INPUT 100Vac~240Vac 10A 60HZ/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
500W Max output Current 20A 20A 41.6A 0.5A 3.0A
Max combined Wattage 110W 499.2W 6W 15W
500W

Downloads

Reviews & Awards

  • 80 PLUS certification information, please refer to the below link: SF-500P14MS
