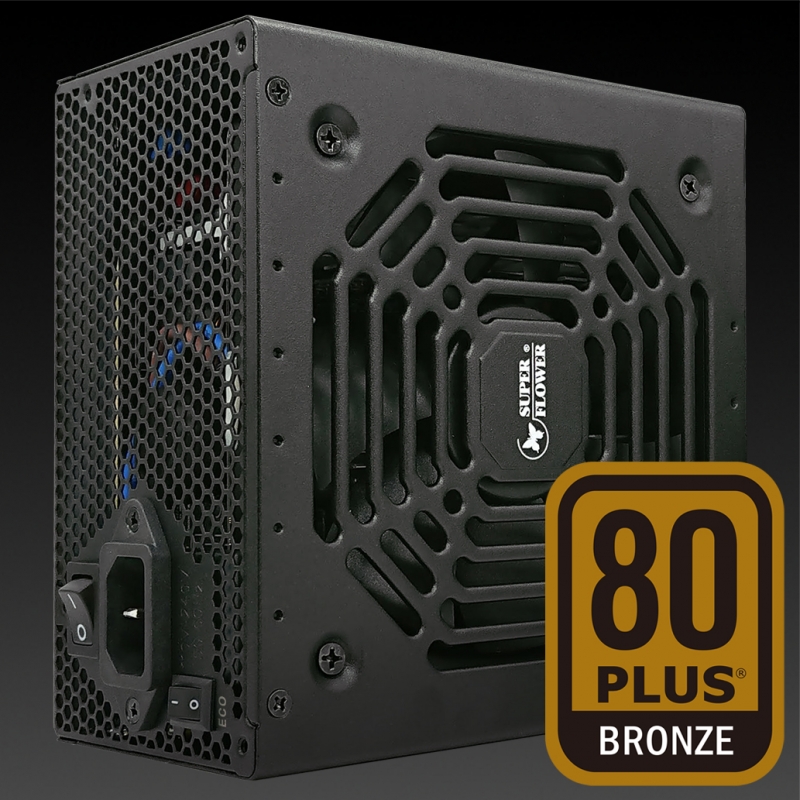

Products Name : Bronze King ECO 500W
Features
Bronze ECO series PSU are 80+ bronze certified with fixed cable design, provides high efficiency & stable power output and come with a 12cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦ Comply with Energy Star Standard &EuP (Energy Using Products) Regulation.
♦ Comply With ATX 12V v2.32, EPS 12V v2.92 Specification.
♦ Support All Intel / AMD Multi-Core CPU and & ATX / BTX Compatible Motherboards.
♦ 80 PLUS® Bronze Certified, 82% 85% 82% Efficiency At 20% 50% 100% Rated Load.
♦ Over Power Protection / Under Voltage Protection / Over Voltage Protection / Short Circuit Protection / Over Current Protection.
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦ More than 2,000 times On/Off test.
♦ Unleaded Green Materials with RoHS/WEEE Compliance.
♦ Full Range Auto Voltage Detection Design from 110V ~ 240V (Active PFC).
♦ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
♦ Durable 105°C Japanese Capacitors.
♦ ECO Intelligent Thermal Control System.
♦ 120mm F.D.B. Cooling Fan.
♦ Support All Intel / AMD Multi-Core CPU and & ATX / BTX Compatible Motherboards.
♦ 80 PLUS® Bronze Certified, 82% 85% 82% Efficiency At 20% 50% 100% Rated Load.
♦ Over Power Protection / Under Voltage Protection / Over Voltage Protection / Short Circuit Protection / Over Current Protection.
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦ More than 2,000 times On/Off test.
♦ Unleaded Green Materials with RoHS/WEEE Compliance.
♦ Full Range Auto Voltage Detection Design from 110V ~ 240V (Active PFC).
♦ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
♦ Durable 105°C Japanese Capacitors.
♦ ECO Intelligent Thermal Control System.
♦ 120mm F.D.B. Cooling Fan.
Specification
| Model No. | SF-500P14HE ECO | |
| Wattage | 500W | |
| 80+ Efficiency | 20%: 82% ; 50% : 85% ; 100% : 82% | |
| Intel Power Design Guide | V2.92 | |
| AC Input | Frequency | 110-240V | 60 / 50Hz | |
| Fan Size | 120mm F.D.B. Fan | |
| Dimension | 140mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OPP / UVP / OVP / SCP / OCP | |
| Safety | cTÜVus / TÜV / CB / CE / FCC / KCC / EAC / RoHS | |
| Temperature | Passed 30℃ Hot Testing | |
| Cable Spec | ||
| 20+4 Pin | Fixed Cables | one cable(550mm) |
| (4+4 Pin) CPU | one cable(600mm) | |
| PCI-E (6+2 Pin) | two cables(550mm) | |
| 3SATA | two cables(450+120+120mm) | |
| 3Molex+1FDD | one cable(450+120+120+120mm) | |
Overview
| model no.: SF-500P14HE | ||||||
| AC INPUT | 110-240Vac 8A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 500W | Max output Current | 20A | 20A | 40A | 0.3A | 2.5A |
| Max combined Wattage | 120W | 480W | 3.6W | 12.5W | ||
| 500W | ||||||
