Power Supply - BRONZE KING / Bronze King 450W

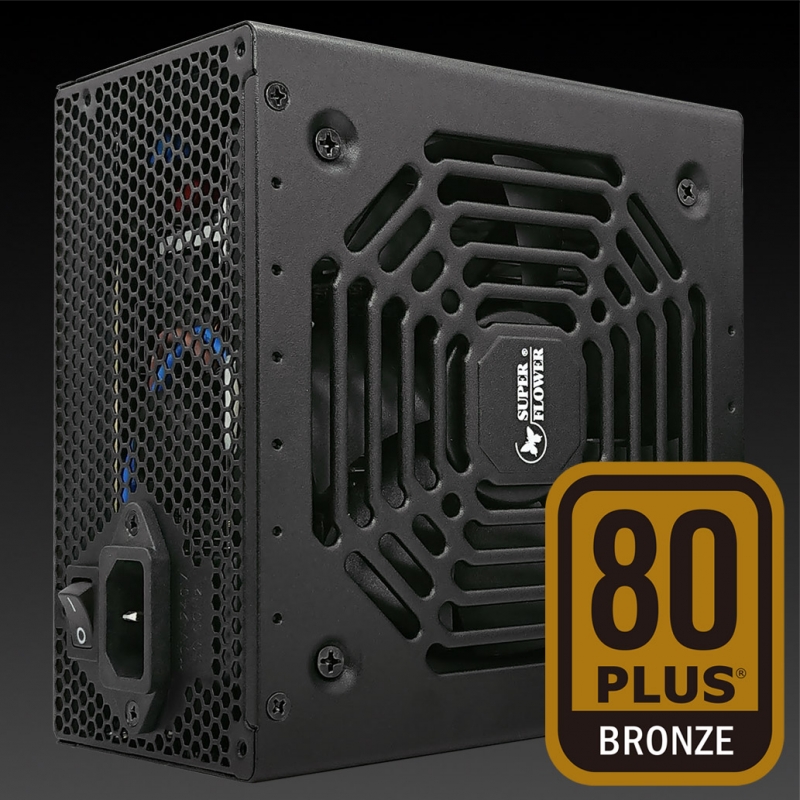

Bronze King 450W
Products Name : Bronze King 450W
Bronze King 450W

  • Features
  • Specification
  • Overview
  • Downloads
  • Reviews & Awards

  • Features
  • Specification
  • Overview
  • Downloads
  • Reviews & Awards

Features

Bronze King series PSU is 80+ Bronze certified with fixed cable design, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
Bronze King series PSU provides high efficiency & stable power output and come with a 12cm cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

★Comply With Energy Star Standard &EuP (Energy Using Products) Regulation
★Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification
★Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
★80 PLUS ® Bronze Certified, 82% 85% 82% Efficiency At 20% 50% 100% Rated Load
★Over Power Protection / Under Voltage Protection / Over Voltage Protection / Short Circuit Protection / Over Current Protection.
★Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
★More than 2,000 times On/Off test
★Lead-Free Green Materials with RoHS/WEEE Compliance
★Full Range Auto Voltage Detection Design from 100V ~ 240V (Active PFC)
★Perfect For Professional & High Performance Gaming System

Specification

Model No. SF-450P14HE
Wattage 450W
Efficiency On 20% 50% 100% loading,with 82% 85% 82% Efficiency
Intel Power Design Guide V2.92
AC Input / Frequency 100V~240V | 60Hz / 50Hz
Fan Size 120mm Sleeve Fan
Dimension 140mm(L) x 150mm(W) x 86mm(H)
Protection OPP、UVP、OVP、SCP、OCP
Safety cTÜVus/ TÜV / CB / CE / FCC / BSMI / RoHS / EAC
Temperature Passed 50℃ Hot Testing
Cable Spec
20+4 Pin Fixed Cables 1 (550mm)
(4+4 Pin) CPU 1 (600mm)
SLI (2 x PCI 6+2 Pin) 1 (550+150mm)
2SATA 2 (450+120mm)
3Molex+1FDD 1 (450+120+120+120mm)

Overview

Model No.: SF-450P14HE
AC INPUT 110Vac~240Vac 6A  60Hz/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB

450W


Max Output Current 18A 18A 35A 0.3A 2.5A
Max Combined Wattage 90W 420W 3.6W 12.5W
450W

Downloads

User Manual
